Take full control of comfort in every room with the MRCOOL DIY 5th Gen 36 K BTU 5-Zone Ductless Mini Split System with Ceiling Cassettes (6 K + 9 K + 9 K + 9 K + 9 K).
Designed for homeowners who want professional-grade HVAC without hiring a contractor, this system delivers quiet, efficient heating and cooling across five zones — all with simple DIY installation.
The system includes:
-
One 6 K BTU cassette (~250 sq ft)
-
Four 9 K BTU cassettes (~375 sq ft each)
All powered by a 36 K BTU 23 SEER2 condenser engineered for reliable comfort throughout the year.
⚙️ Key Features
✅ DIY Installation — No Vacuum Pump Required
Patented Quick Connect® Line Sets come pre-charged with eco-friendly R-454B refrigerant, so you can install confidently without special tools or HVAC experience.
🌡️ Smart Comfort Control
Use the MRCOOL SmartHVAC App or voice assistants like Amazon Alexa and Google Home to manage each zone, set schedules, and monitor performance.
💨 Low-Profile Ceiling Cassette Design
Recessed, discreet air handlers fit between standard 16-inch joists, providing powerful airflow and whisper-quiet operation — ideal for both retrofits and new builds.
♻️ Energy Efficient & Eco-Safe
High-efficiency DC inverter technology and the new R-454B refrigerant reduce environmental impact while delivering lower operating costs.
🔒 Reliable Performance & Warranty
-
7-Year Compressor Warranty
-
5-Year Parts Warranty
-
Optional Lifetime Coverage via the MRCOOL Care Program
Gold Fin® coating protects the condenser from corrosion and coastal wear.
💡 Why Choose MRCOOL DIY 5th Gen Ceiling Cassettes
-
Heat & cool up to 1,500 sq ft across five zones
-
Compatible with both ceiling and wall air handlers
-
Auto, Sleep, Dehumidify modes for precision comfort
-
Wi-Fi and app integration for real-time control
-
Quiet mode and filter reminders for easy maintenance

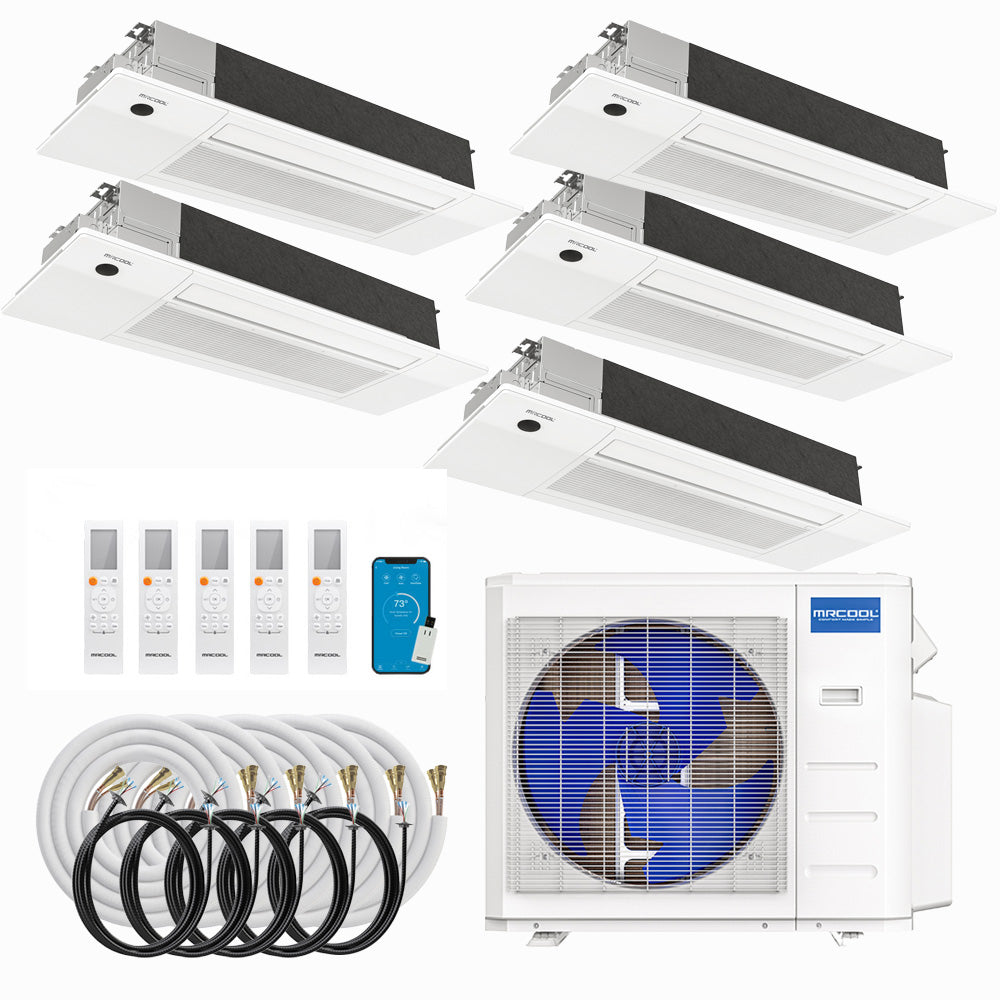

📦 What’s Included
-

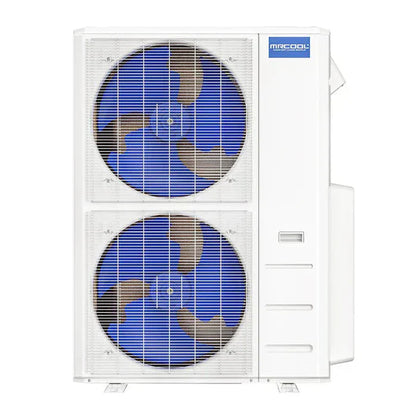

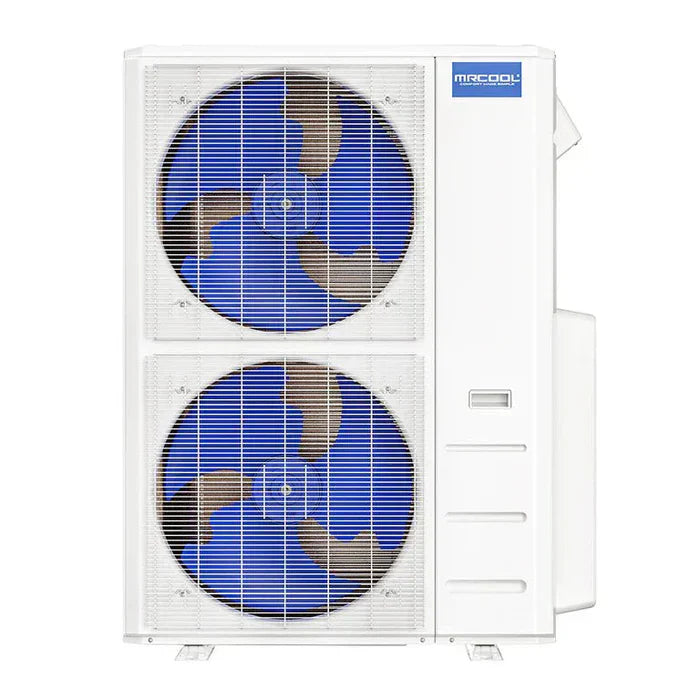

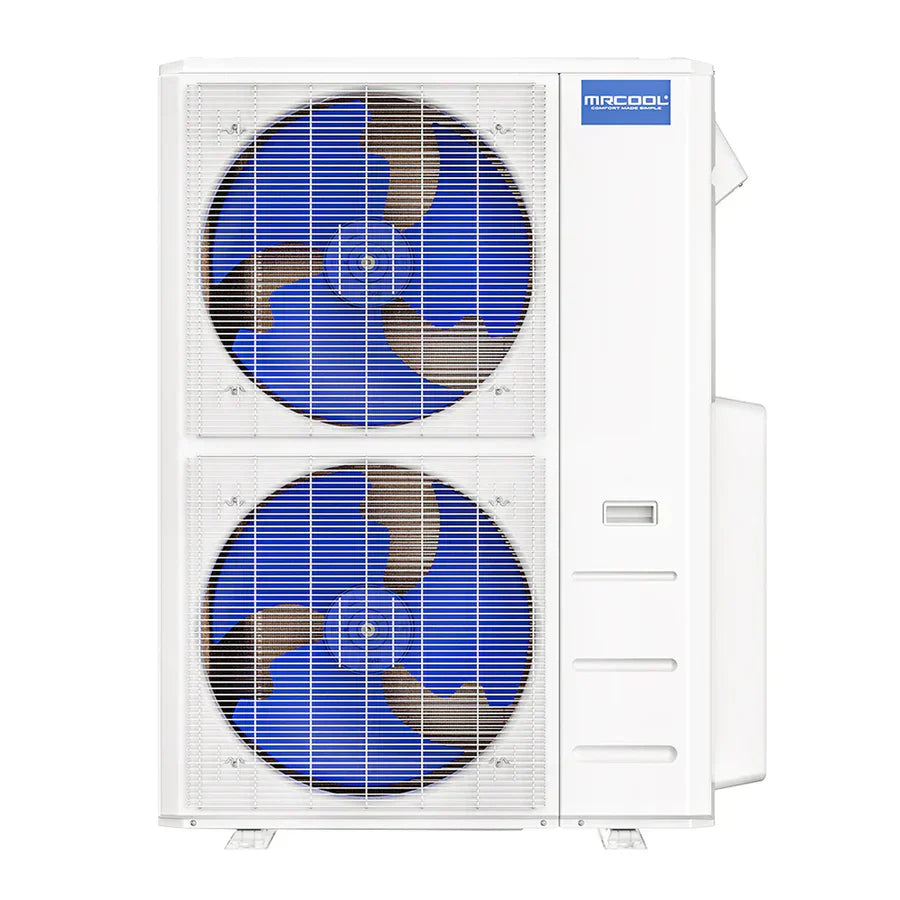

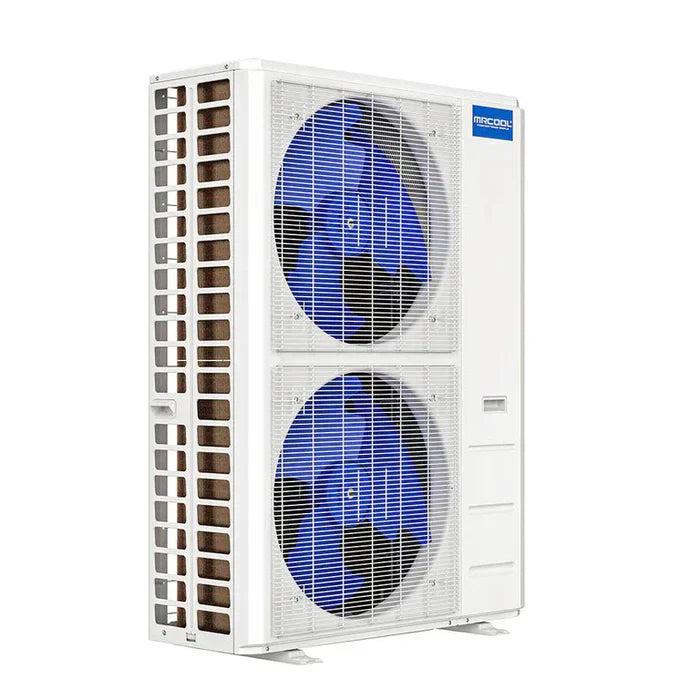

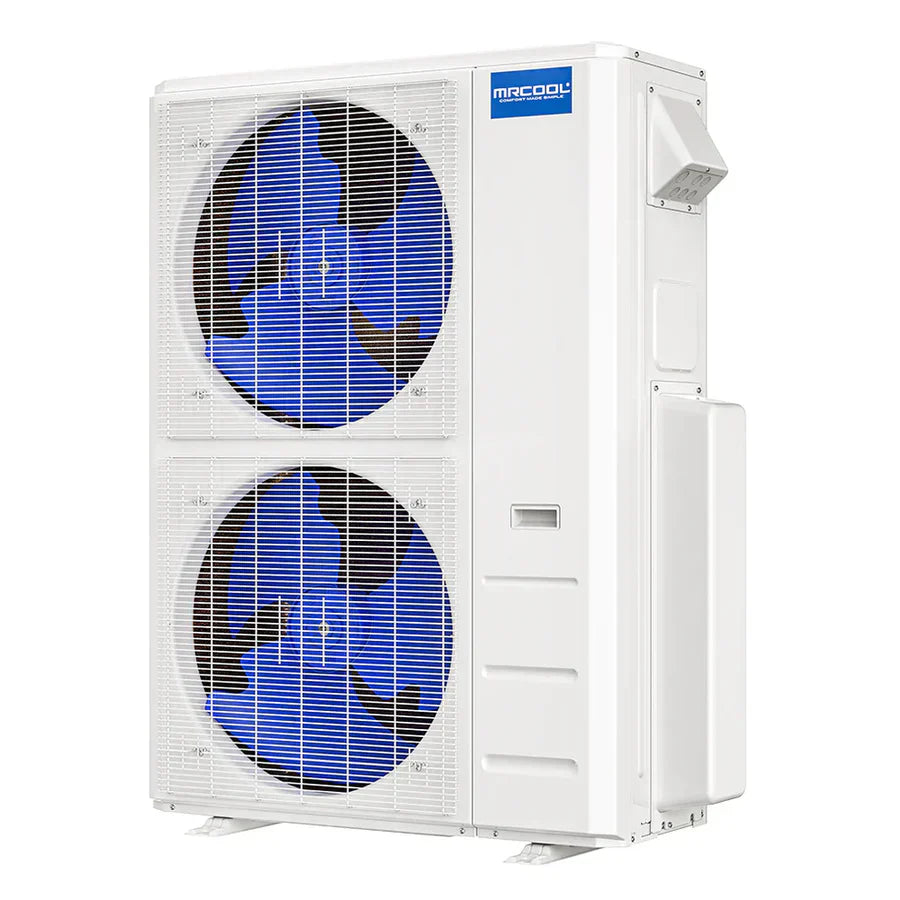

(1) 36 K BTU MRCOOL DIY 5th Gen Condenser
-
(1) 6 K BTU Ceiling Cassette
-
(4) 9 K BTU Ceiling Cassettes
-
Pre-charged DIY Quick Connect Line Sets & Couplers
-
Remote Controls & Installation Manuals
⚡ Technical Specifications
| Specification | Value |
|---|---|
| Cooling Capacity | 34 000 BTU |
| Heating Capacity | 36 000 BTU |
| Voltage | 208/230 V Single Phase |
| Refrigerant | R-454B (Eco-Safe) |
| SEER2 / HSPF2-4 | 23 / 9.9 |
| Zones Supported | 5 Indoor Units |
| Compressor Type | DC Inverter Rotary |
| Noise Level | 64 dBA (Max) |
| Connectivity | Wi-Fi, SmartHVAC App, Alexa, Google Home |
| Certifications | ETL, AHRI, Energy Star Certified |
🌬️ Performance & Comfort Features
-
Multi-room zoning for balanced climate control
-
Auto mode adjusts cooling/heating as needed
-
Dehumidify mode for humid seasons
-
Sleep mode for energy savings overnight
-
Quiet operation and filter alerts for low maintenance
💬 Customer Benefits
-
Install it yourself and save thousands on labor
-
0 % financing available through Affirm
-
Free shipping on all orders
-
Lifetime technical support from MRCOOL
🏁 The DIY Comfort Solution
The MRCOOL DIY 5th Gen 36 K BTU 5-Zone Mini Split with Ceiling Cassettes (6 K + 9 K + 9 K + 9 K + 9 K) delivers unmatched flexibility, efficiency, and style.
Enjoy reliable comfort throughout the year, smart control, and easy installation — without the contractor markup.
Your comfort, your way — powered by this retailer.
