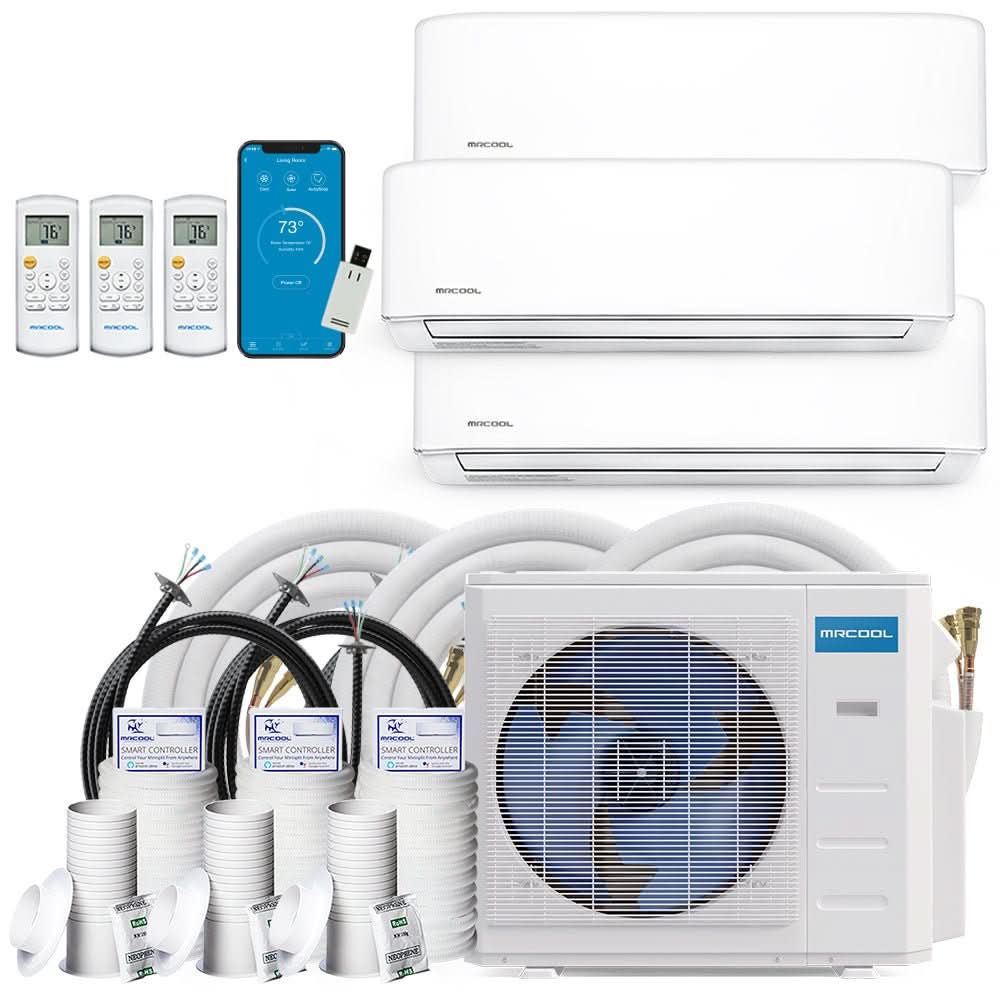

MRCOOL DIY 5th Gen Multi-Zone 27K BTU Three Zone Ductless Mini Split - A Heating and AC System You Can Install By Yourself!

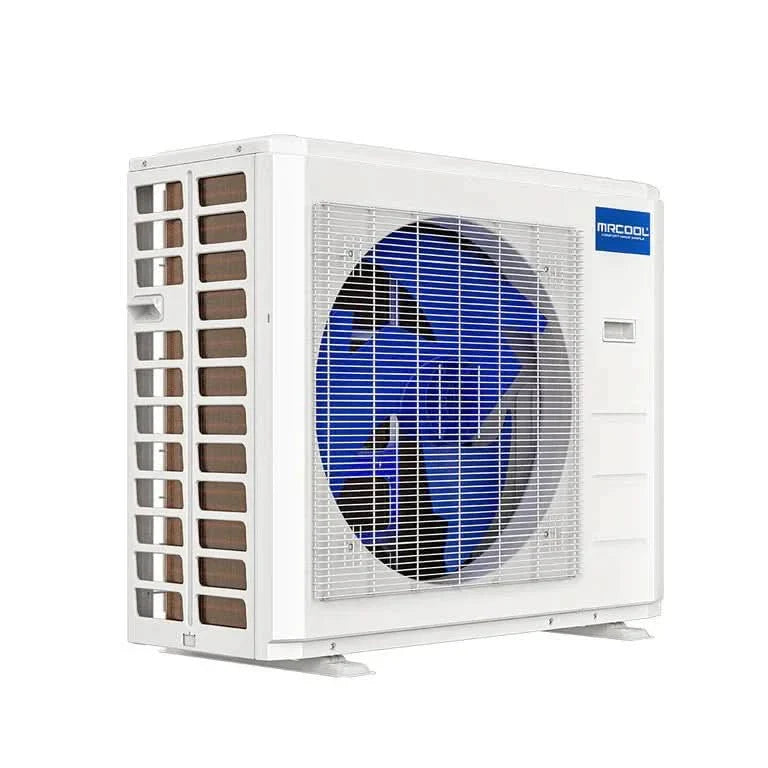

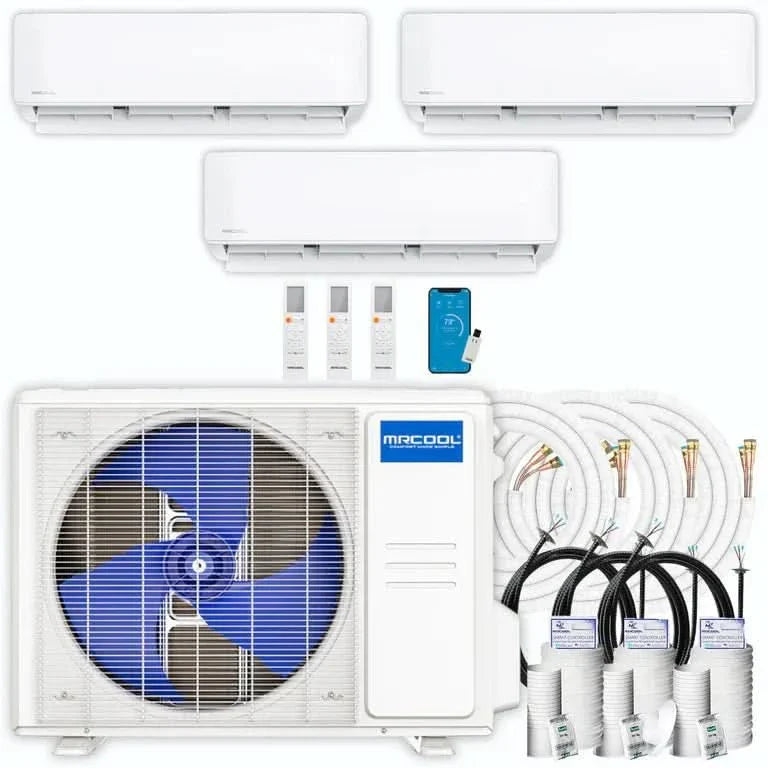

Heat or cool three zones with the MRCOOL DIY Multi-Zone 27,000 BTU 23 SEER2 3 Zone Ductless Heat Pump Split System - 6K + 9K + 9K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 27,000 BTU capacity. The three indoor air handlers are 6,000 btu and 9,000 btu and use the condenser's power to heat and cool up to approximately 200 square feet and 400 square feet respectively. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus a limited lifetime compressor warranty), 5 Year Parts Manufacturer Warranty!
MRCOOL DIY 5th Gen Multizone 27,000 BTU systems can support up to four indoor units. Not enough? The DIY MULTI 36,000 BTU system can support up to FIVE indoor units.

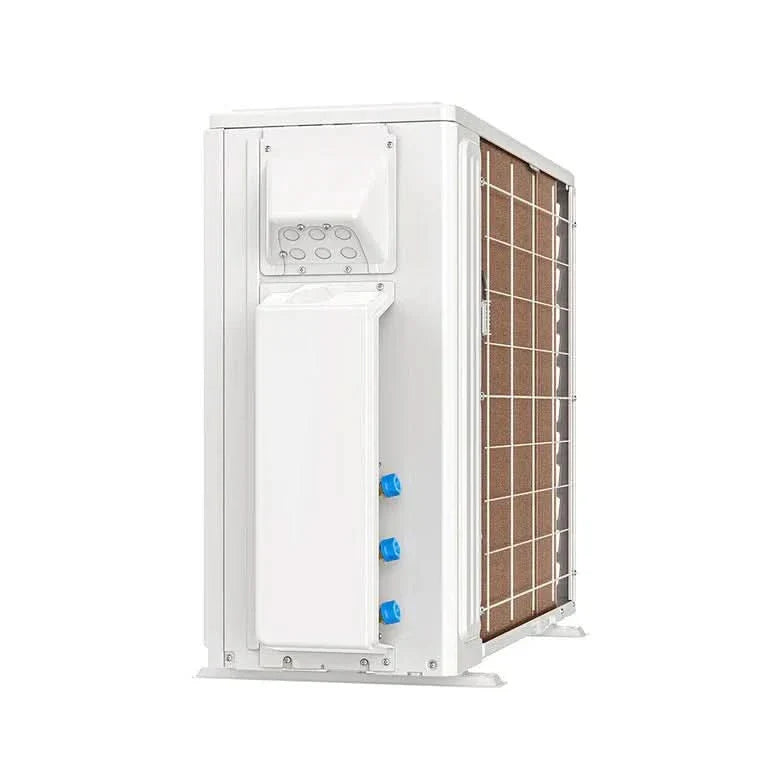

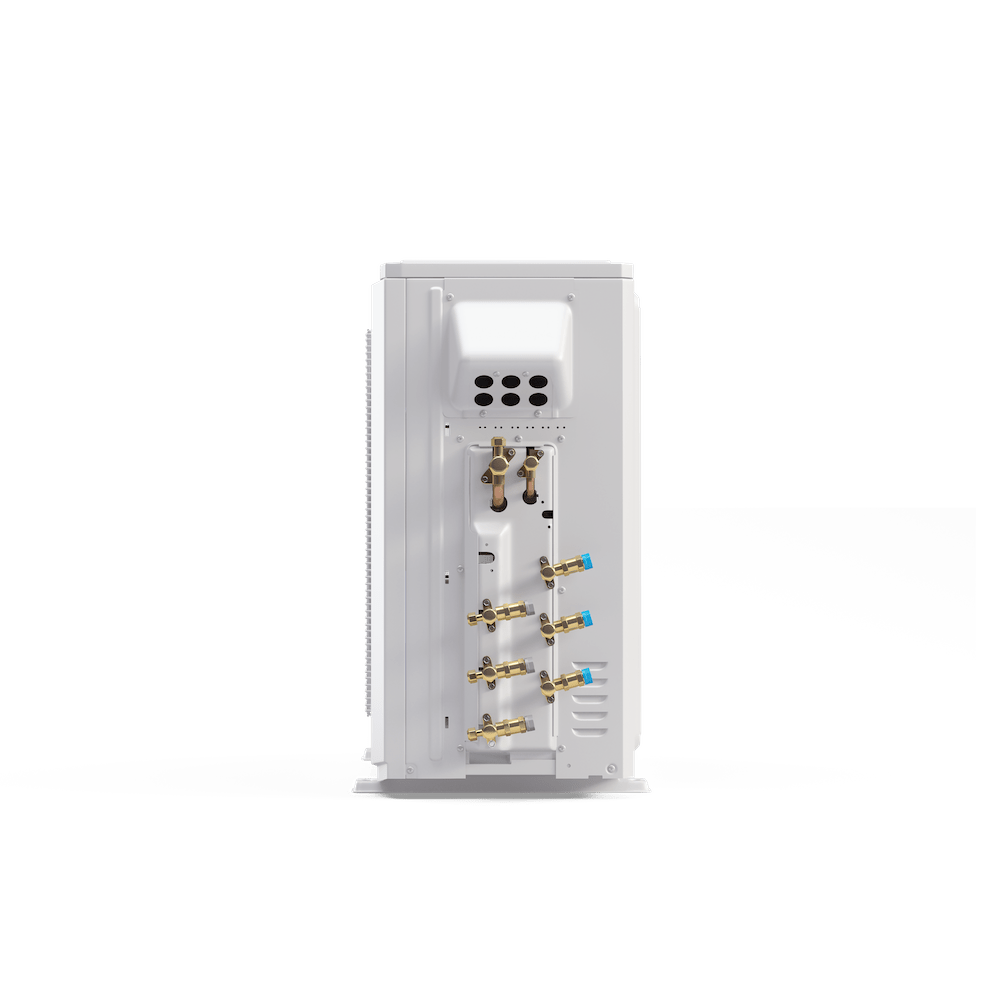

The MRCOOL DIY Multi-Zone 27,000 BTU 23 SEER2 3 Zone Ductless Heat Pump Split System - 6K + 9K + 9K units are super easy to install and require no special training or expensive specialty tools. The DIY system includes Quick Connect lines that are pre-charged with eco-friendly R-454B refrigerant. Due to the Quick Connect line set, you don’t have to hire an HVAC technician to complete the install. We also have simple video instructions on how to install a DIY Multi-Zone unit yourself!
The MRCOOL DIY Multi-Zone 27,000 BTU 23 SEER2 3 Zone Ductless Heat Pump Split System - 6K + 9K + 9K can cool through the Summer, heat through the Winter, and dehumidify through the wet seasons. Plus, you can quickly check the temperature of each room in your home from the easy to read digital display or from the MRCOOL Smart Controller mobile app. The display on the front of each indoor air handler unit can also display troubleshooting codes and alerts, so you are always aware of any issues with your system. Operate each unit wirelessly with either the included remote or with the MRCOOL Smart Controller app for Apple or Android devices. You also have the ability to control your mini-split unit with Amazon Alexa or Google Home.

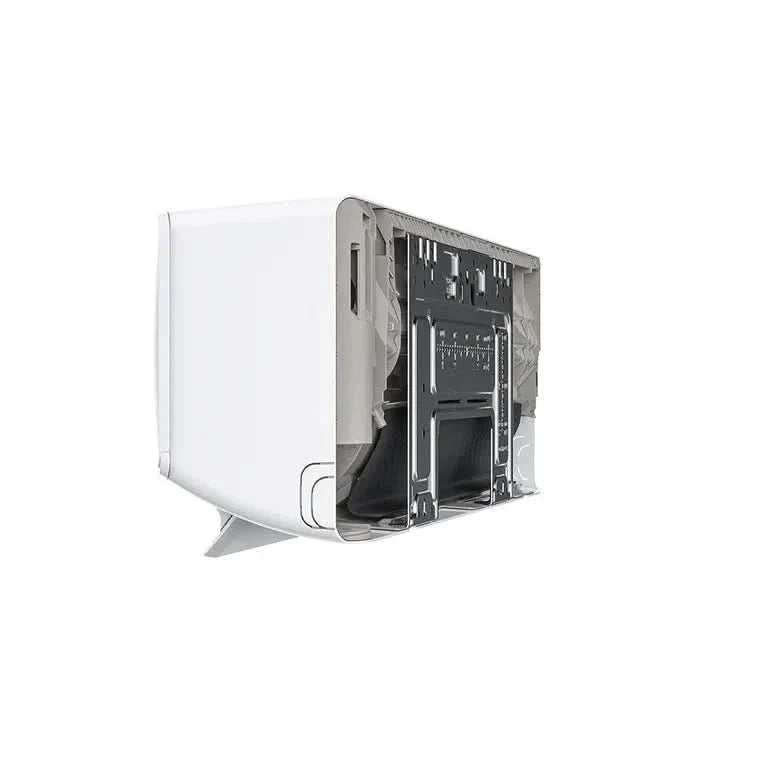

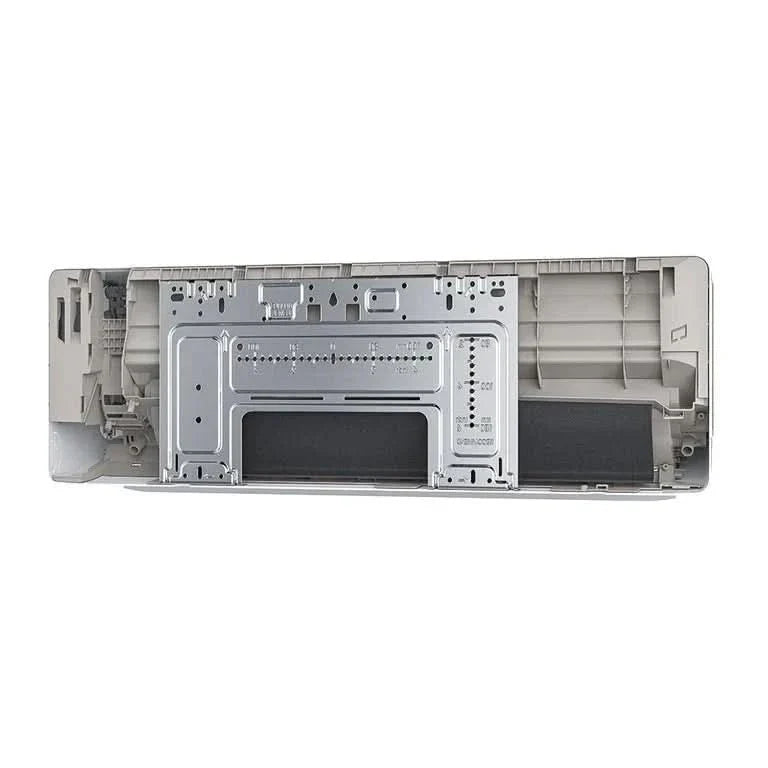

The three MRCOOL DIY Multi-Zone air handlers included in this set provide directional control of the heated or cooled air. This distributes the air evenly so everyone in the room can stay comfortable. If you are in a situation that requires forced cooling, you can set your MRCOOL DIY System to manual with the button located on the right side of the unit under the front panel. In this emergency operation mode, you can test the cooling operation of your unit after installation or to complete a maintenance task.
In auto mode, each unit provides air for your home at your desired comfort level. Set your desired temperature, and the HVAC unit will determine how much heat or air conditioning is needed. You can also set this system to a drying function, which will continue to control the space’s air temperature while dehumidifying.
Use the sleep mode at night to save money on your utilities bills and use less energy. Sleep mode operates in an 8 hour window once turned on.
The MRCOOL DIY Multi-Zone 27,000 BTU 23 SEER2 Three-Zone Ductless Heat Pump Split Air Conditioner System - 6K + 9K + 9K comes with many options, so you can customize your system based on your needs. Limit your energy usage and save money on your utility bill by using the system’s timer function. If your system begins to run low on refrigerant, an alert will appear on the easy-to-read display on the front of each air handler, letting you know there may be a leak. If you desire to keep a room quiet and minimize lighted alerts, you can mute each indoor unit. By muting the system, the buzzer for alerts will not sound and the LED lit display will turn off. Should the unfortunate event of a power outage occur, the MrCool system will automatically shut off and then back on with the same settings once power returns.
Easily maintain your MRCOOL DIY Multi-Zone 27,000 BTU 23 SEER2 Three-Zone Ductless Heat Pump Split Air Conditioner Unit with alerts and reminders. Any troubleshooting codes will appear on the front display and the user manual contains an index for common codes. Air filter cleaning alerts are automatic, and you can easily keep the minimal indoor units clean with a dry or damp cloth.
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System

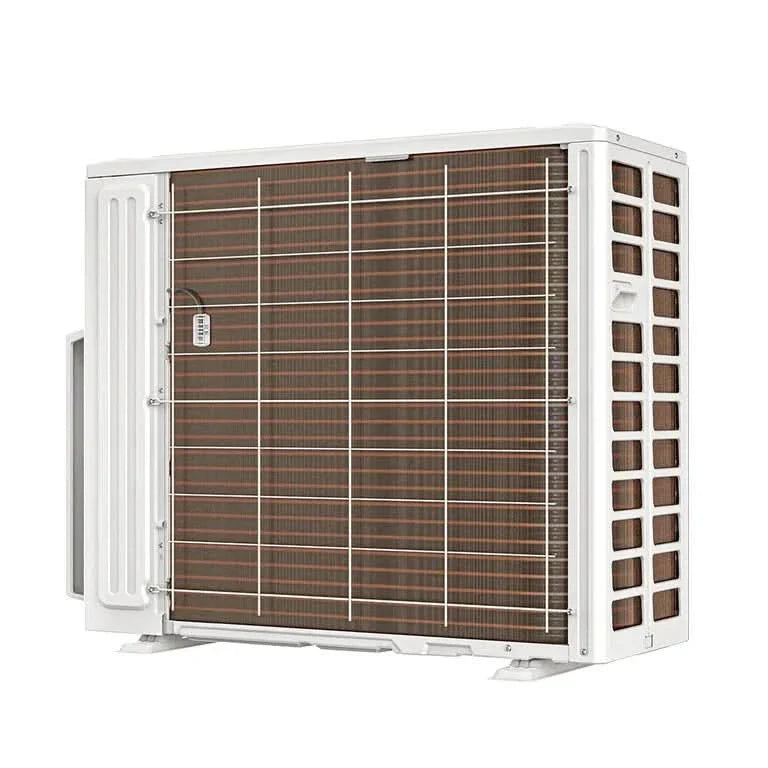

- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Follow Me® Feature
- Low Ambient Cooling
Specifications:
| BRAND NAME | MRCOOL |
| SERIES | DIY 5th Gen Multi-Zone |
| MODEL | DIY-MULTI3-27HP230C |
| GTIN | 810063869502 |
| UPC | 810063869502 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION | MRCOOL® DIY 5th Gen Multi-Zone 3-Zone Condenser |
| SEER | 22 |
| SEER2 | 22 |
| EER | 12 |
| EER2 | 12 |
| HSPF-4 | 10.3 |
| HSPF-5 | 8.2 |
| CFM | 2129.41 |
| COOLING CAPACITY (BTU) | 27000 |
| HEATING CAPACITY (BTU) | 27000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 40 |
| MIN CIRCUIT AMPACITY (A) | 26 |
| COLOR | White |
| COLOR FAMILY | White |
| ZONE CAPACITY | Up to 3 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME (OZ) | 91.71 |
| DECIBEL RATING (DBA) | 61 |
| INVERTER | Yes |
| MIN AMBIENT COOL (F) | 5 ~ 122 |
| MIN AMBIENT HEAT (F) | -13 ~ 75.2 |
| MAX LINESET LENGTH (FT) | 172 TOTAL |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| COMPRESSOR MOTOR TYPE | Twin - Rotary |
| CONDENSER FAN MOTOR RPM | 1050/900/850 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REGISTERED WARRANTY | Limited Lifetime Compressor |
| BASE WARRANTY | 5-year Parts/7-year Compressor |
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
| BASE COMPRESSOR WARRANTY | 7-year Compressor |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 139.99 |
| GROSS DEPTH (IN) | 19.88 |
| GROSS HEIGHT (IN) | 35.04 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 157 |
