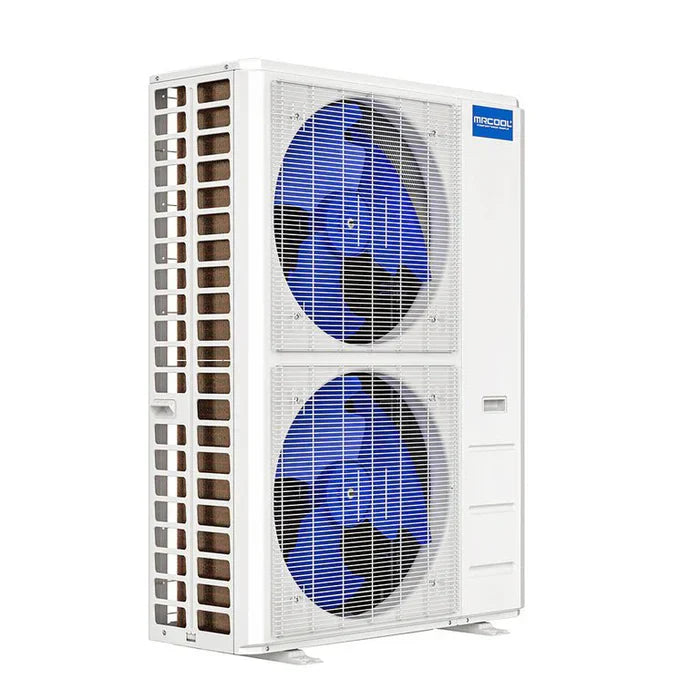

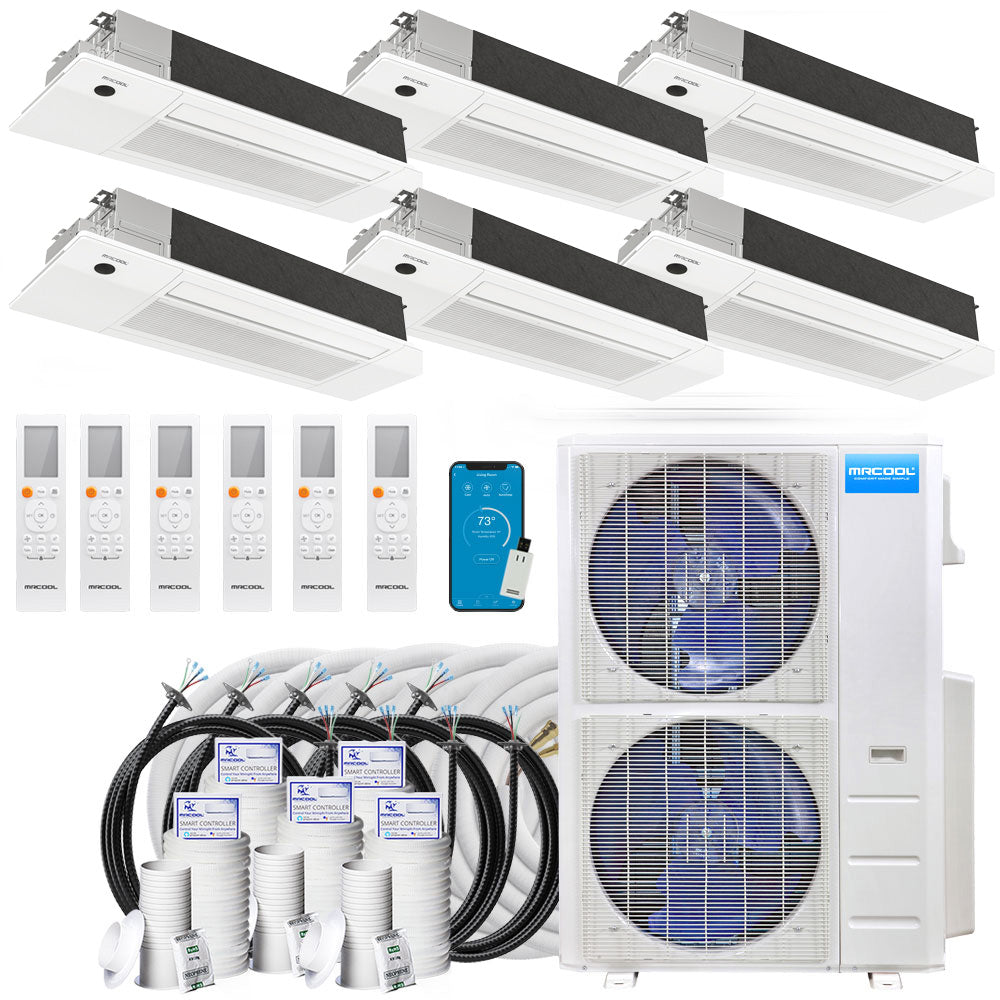

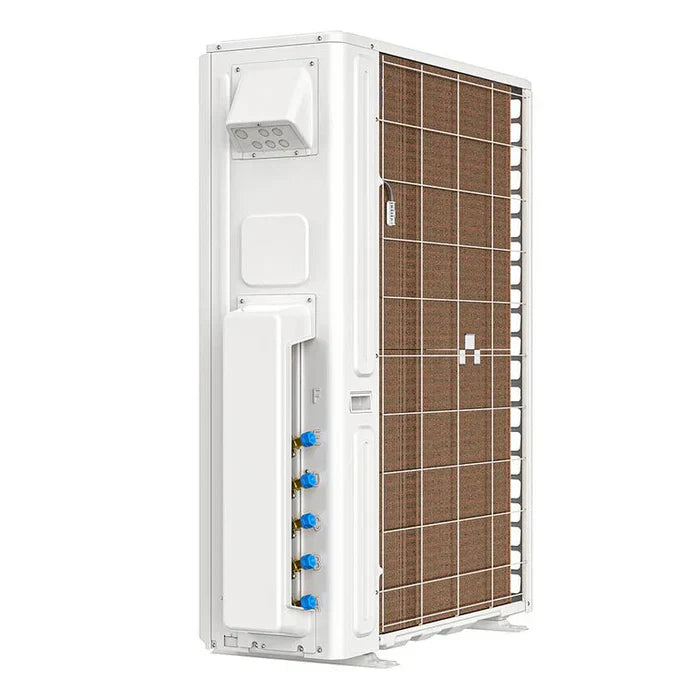

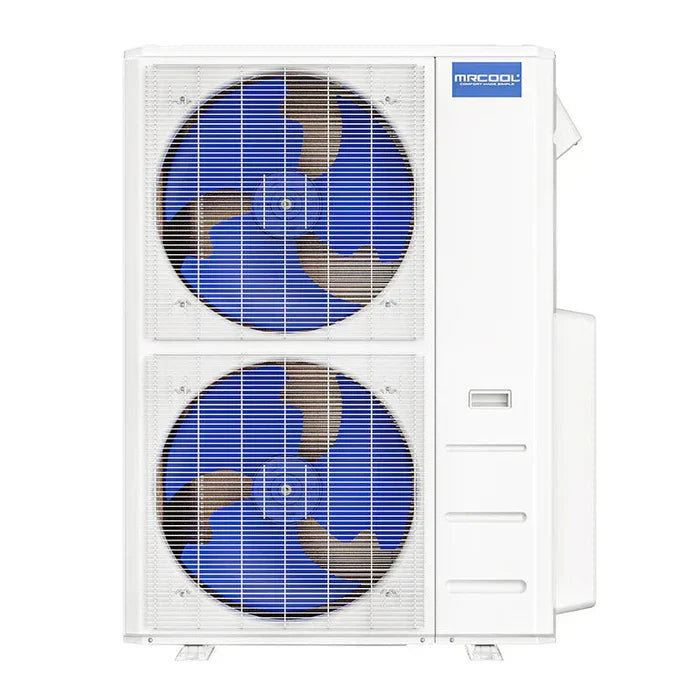

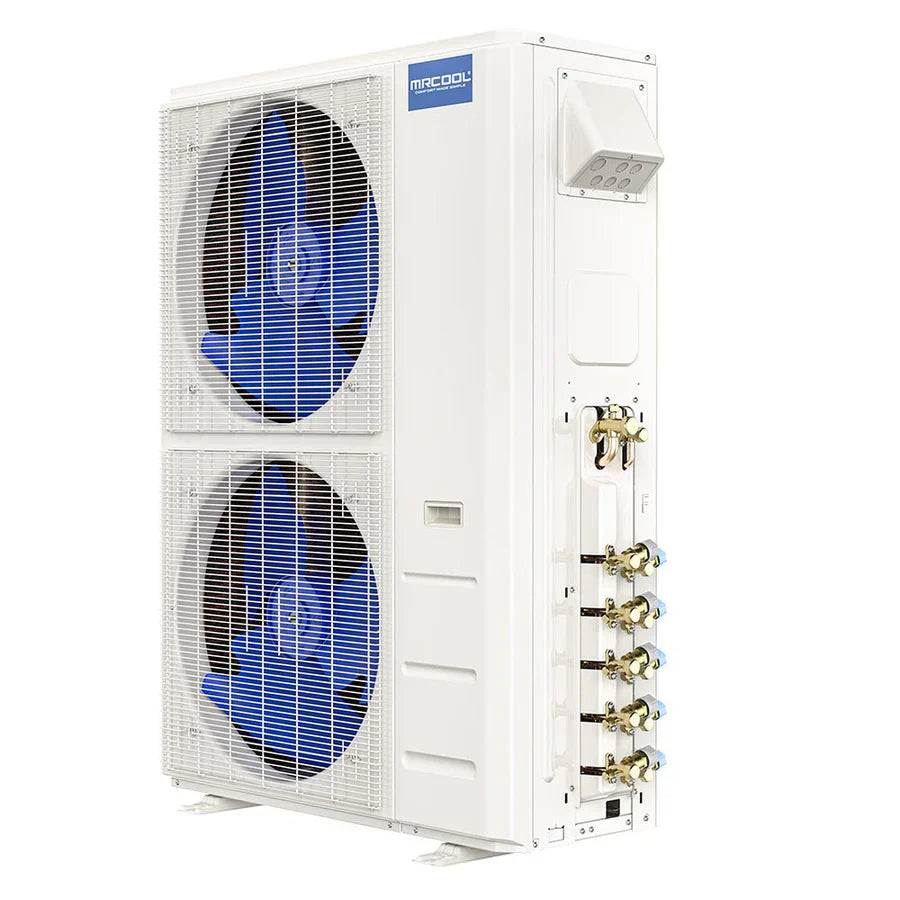

The MRCOOL DIY 5th Gen 48,000 BTU 6-Zone Ceiling Cassette Mini-Split System delivers powerful and flexible heating and cooling for up to six rooms — all from a single outdoor condenser. Designed for easy installation and quiet performance, this ductless system combines high efficiency with a clean, low-profile ceiling-mounted aesthetic.
Compatible with any combination of 6K, 9K, 12K, and 18K ceiling cassette air handlers, this system lets you customize comfort room by room. Whether you’re upgrading a residential home, office, or light commercial space, the 48K 6-zone system offers reliable comfort across a wide range of indoor environments.
Featuring a 21.8 SEER2 energy efficiency rating, built-in Wi-Fi, and smart controls via smartphone app, Alexa, or Google Assistant, MRCOOL’s DIY system is made for modern living without compromising performance.
Key Features:
-
Covers up to 6 zones with a single 48K multi-zone condenser
-
Compatible with 6K, 9K, 12K, and 18K ceiling cassette air handlers
-
21.8 SEER2 energy efficiency for low operating costs
-
DIY-friendly installation with no special tools required
-
Flush-mount ceiling cassette design for unobtrusive comfort
-
Whisper-quiet operation and advanced inverter technology
-
Operates in extreme conditions: heats down to -13°F, cools up to 122°F
-
Smart controls via MRCOOL app, Alexa, or Google Assistant
-
Durable Gold Fin® coating for corrosion resistance
-
Backed by 5-year parts and 7-year compressor warranty
| BRAND NAME | MRCOOL |
| SERIES | DIY 5th gen Multi-Zone Mini-splits |
| MODEL | DIY-MULTI6-48HP230D-O |
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION | MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v |

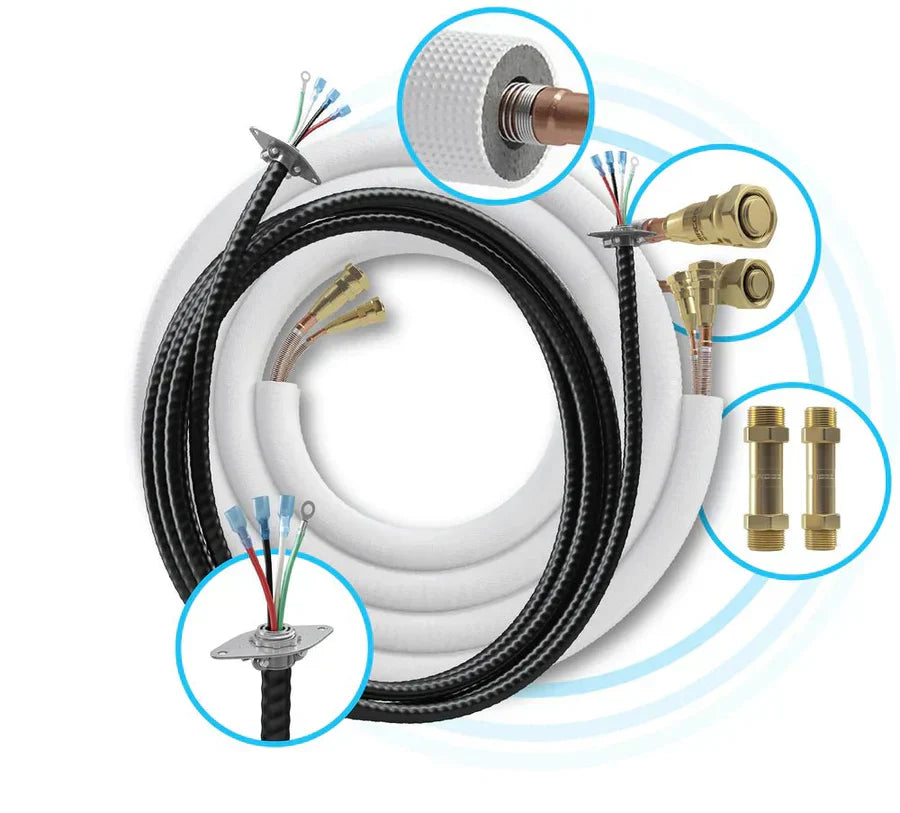

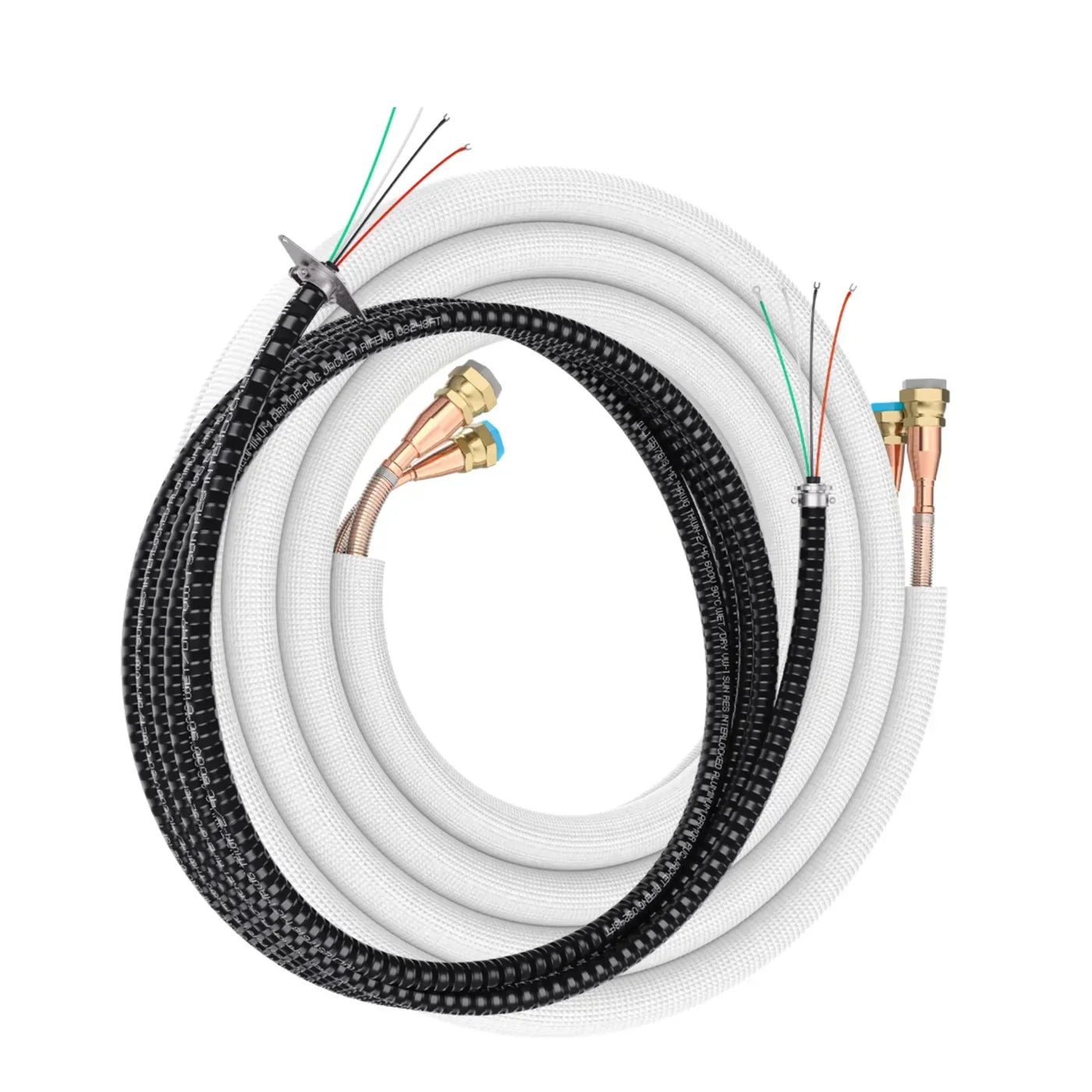

| LONG DESCRIPTION | We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down! |

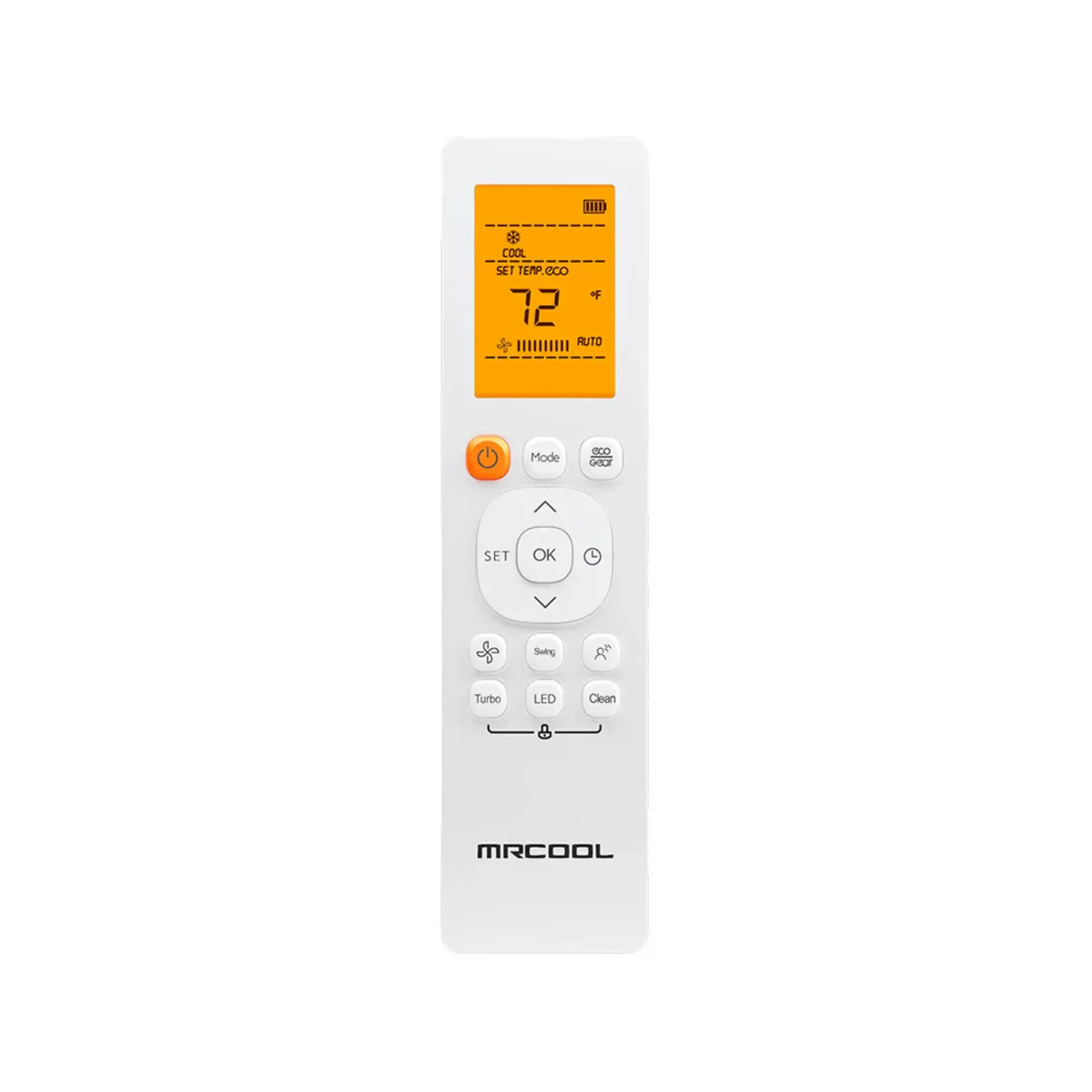

| FEATURE LIST | Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | (3/8 X4) (1/2 X2) |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
