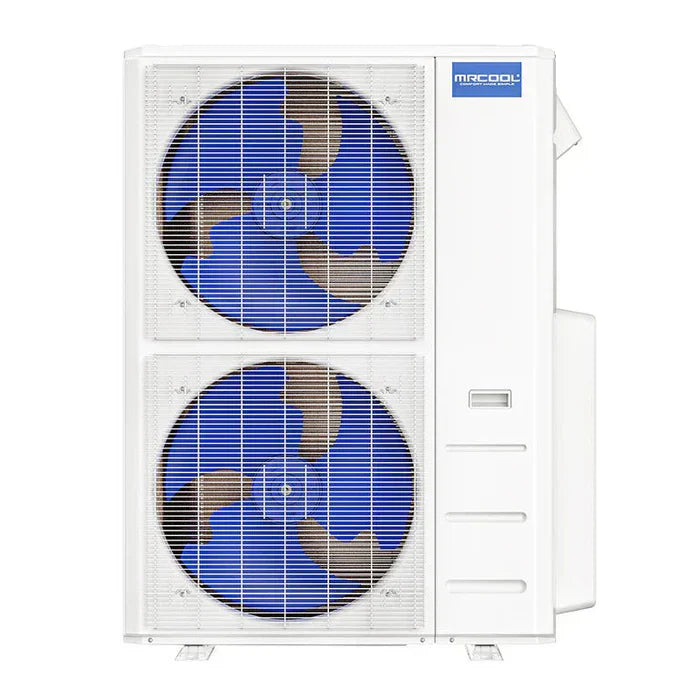

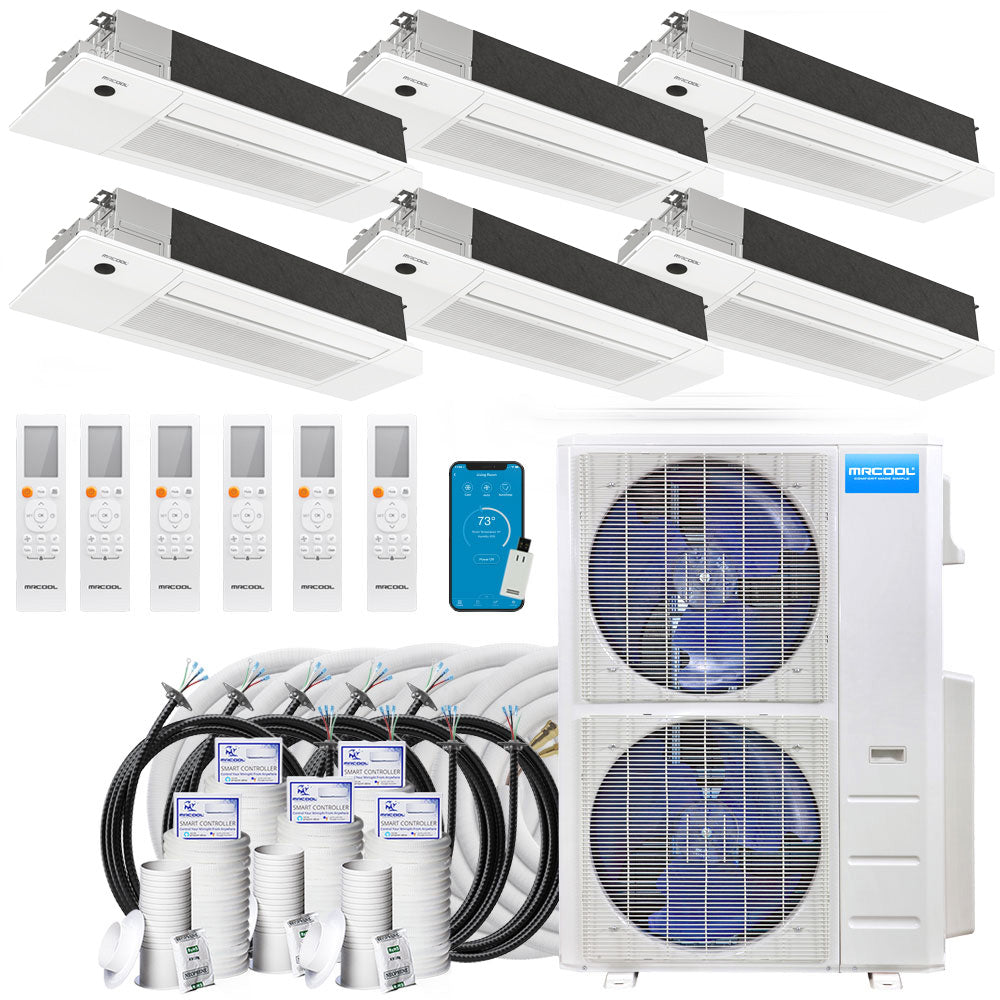

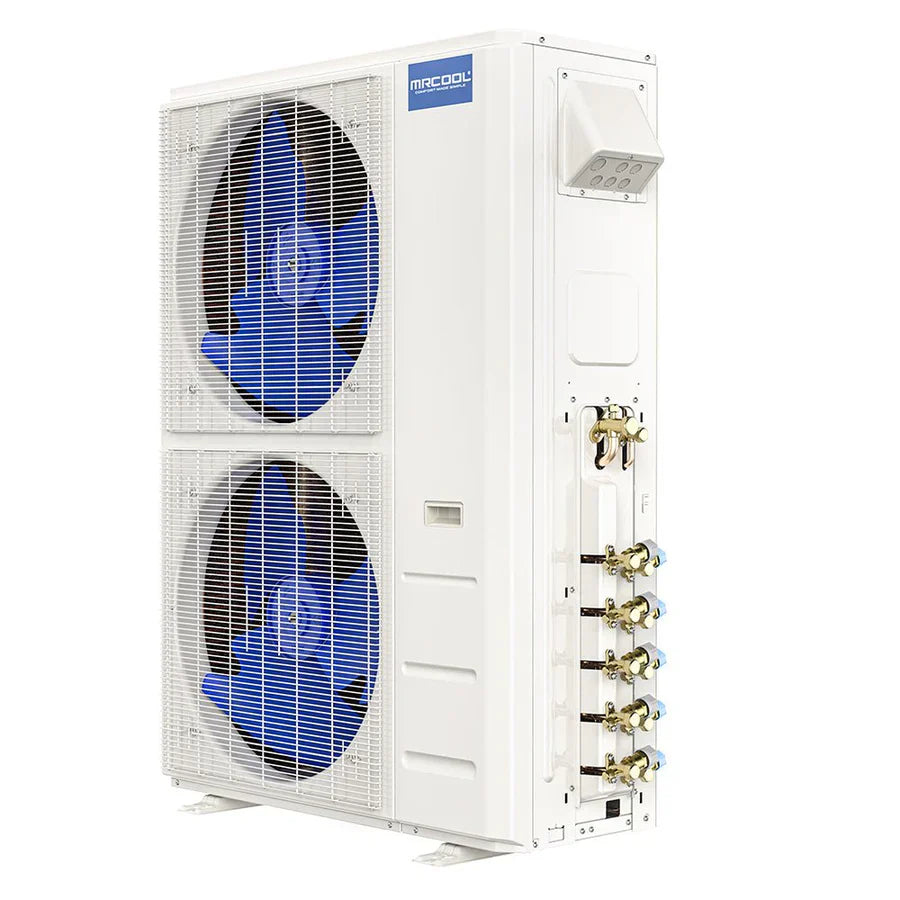

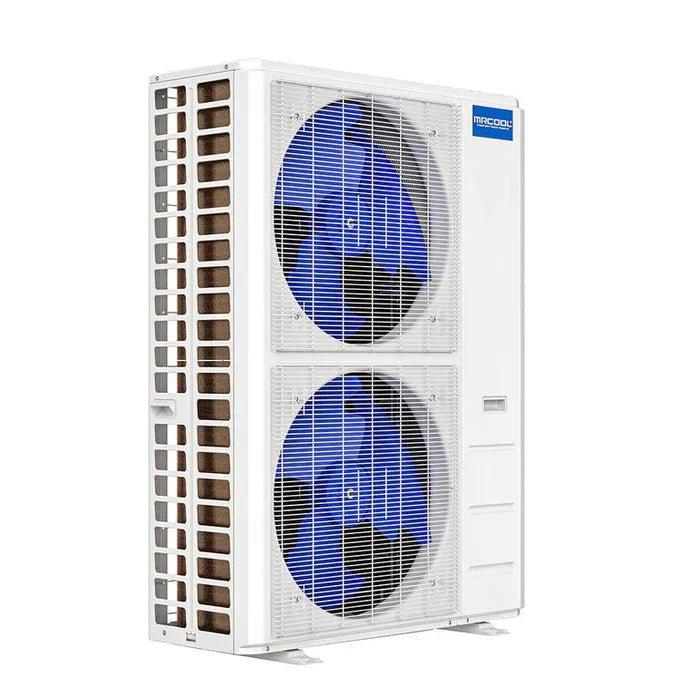

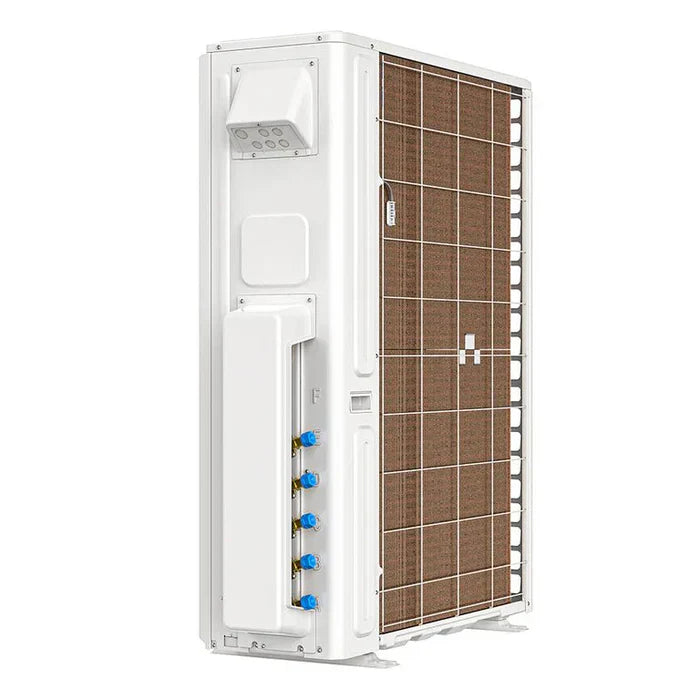

The MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Ceiling Cassette Mini-Split System is the largest capacity DIY unit available, capable of heating and cooling up to six individual zones with precision and efficiency. Designed for powerful whole-home performance, it combines a high-output condenser with your choice of low-profile ceiling cassette air handlers — all with smart control and DIY installation in mind.
This system supports any combination of 6K, 9K, 12K, and 18K ceiling cassettes, allowing full customization for bedrooms, living rooms, garages, offices, or large open spaces. With a 21.5 SEER2 rating, it maximizes efficiency while delivering serious comfort even in extreme weather conditions.
Whether you’re retrofitting an older home or building out a modern multi-room system, this DIY 6-zone setup offers unmatched versatility — without the need for a pro HVAC installer.
Key Features:
-
Supports six indoor zones with a single 55K condenser
-
Compatible with 6K, 9K, 12K, and 18K ceiling cassette units
-
21.5 SEER2 energy efficiency for lower utility bills
-
Ideal for large homes, offices, shops, or multi-room spaces
-
Flush-mounted ceiling cassettes blend seamlessly into any décor
-
DIY installation with included quick-connect fittings
-
Operates in extreme temperatures: heats to -13°F, cools to 122°F
-
App, Alexa, and Google Assistant smart control integration
-
Corrosion-resistant Gold Fin® condenser coating
-
Backed by 5-year parts and 7-year compressor warranty
| BRAND NAME | MRCOOL |
| SERIES | DIY 5th gen Multi-Zone Mini-splits |
| MODEL | DIY-MULTI6-55HP230D-O |
| GTIN | 840255587488 |
| UPC | 840255587488 |
| SHORT DESCRIPTION | MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v |

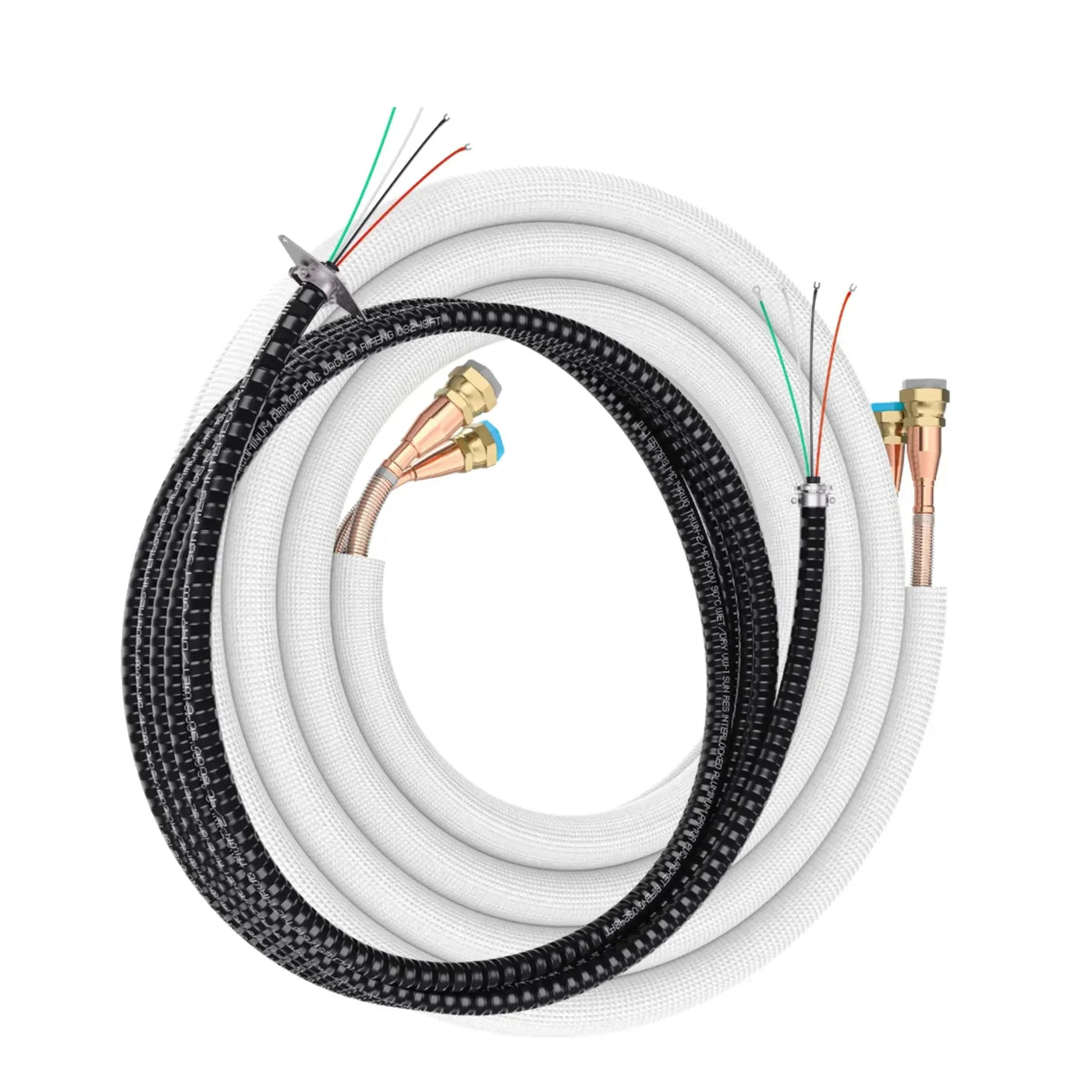

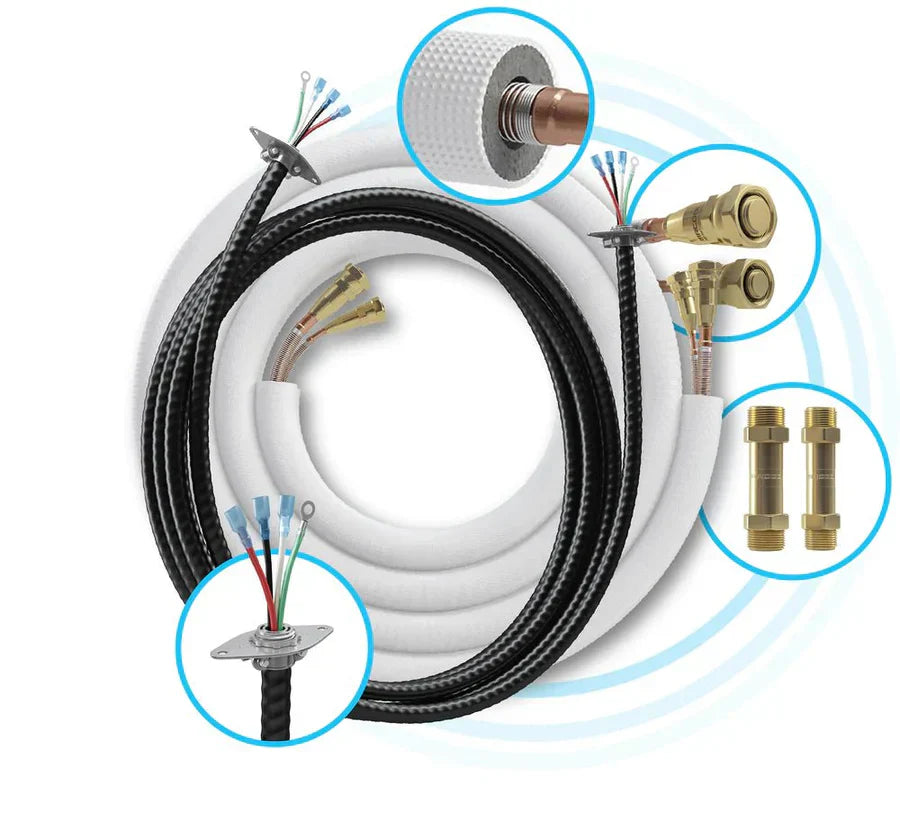

| LONG DESCRIPTION | Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system. The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. These line sets are sold separately. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort. One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer! |

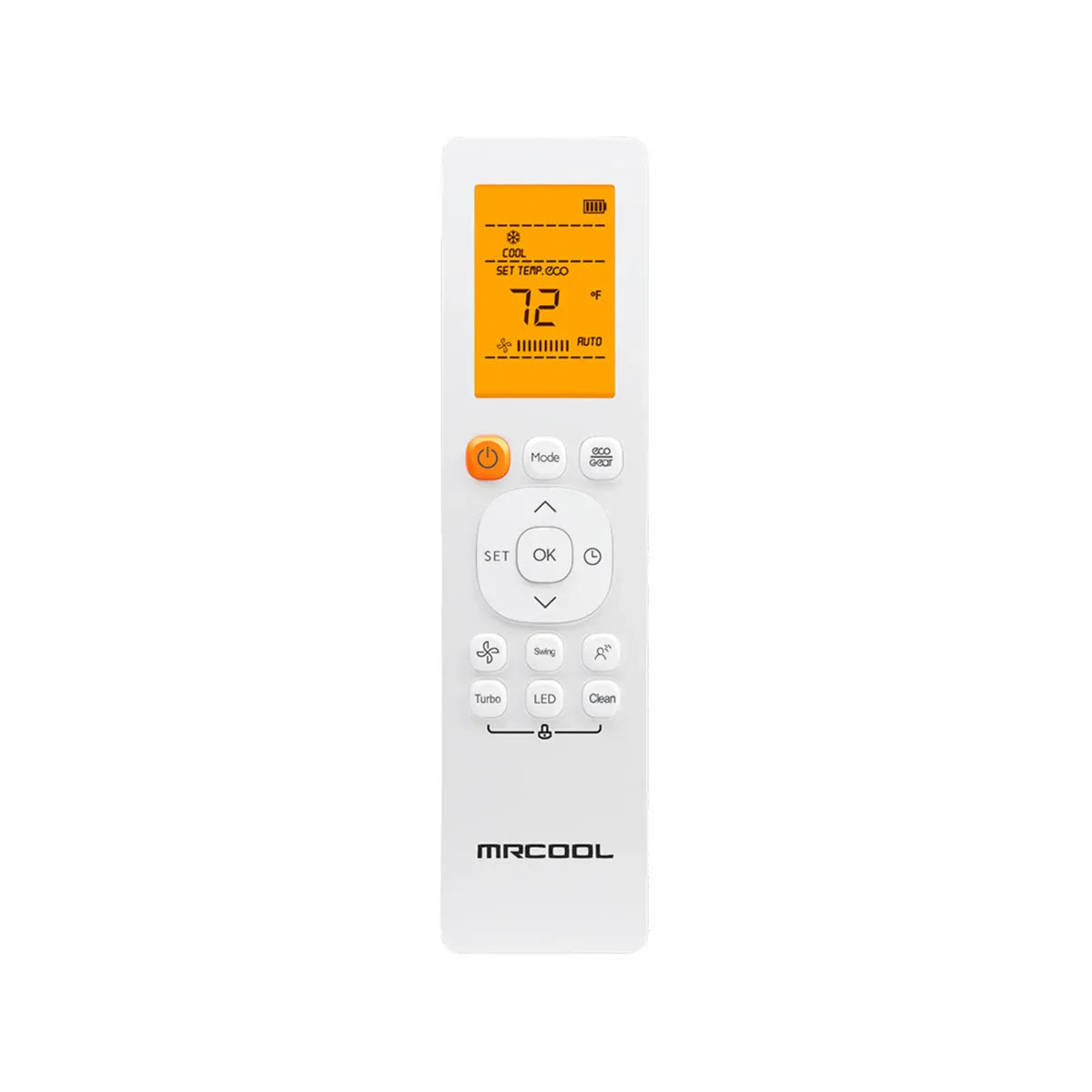

| FEATURE LIST | Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 22 |
| EER2 | 12 |
| HSPF2-4 | 10.6 |
| HSPF2-5 | 8.5 |
| TONNAGE | 4.6 |
| COOLING CAPACITY (BTU) | 47000 |
| HEATING CAPACITY (BTU) | 55000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 43 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 151.68 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | (3/8 X4) (1/2 X2) |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 245.81 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 267.46 |
