MRCOOL®

DIYM655091212121212-CC

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 12K + 12K + 12K + 12K + 12K) Ductless Mini Split Heat Pump & Air Conditioner with Ceiling Cassette Units

50 in stock

$12,447.00 $15,434.28 You save $2,987.28
  • ™ Authorized Online Dealer of MRCOOL®
  • ✂ We Secure the Lowest Price
  • ⏲ Ships Within 2–3 Business Days
  • 🗐 Manufacturer Warranty Included
  • Questions? Call/Text Our Experts (940) 463-1346
  • Secured Payment
  • Authorized Dealer
  • 30-Day Return Policy

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 12K + 12K + 12K + 12K + 12K) Ductless Mini-Split Air Conditioner & Heat Pump with Ceiling Cassettes

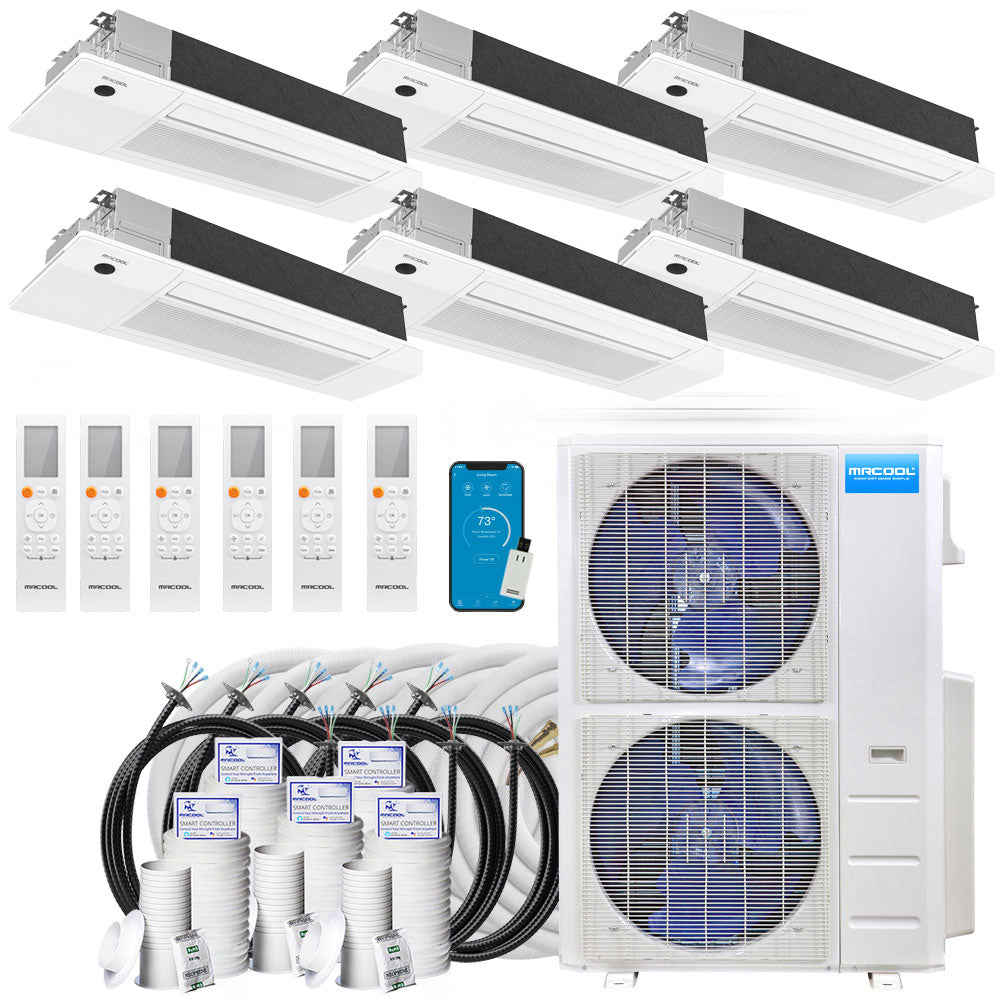

Build your dream comfort system with the MRCOOL DIY 5th Gen 6-Zone 55,000 BTU 22 SEER2 Ductless Mini-Split System — a complete package featuring six ceiling cassette air handlers (9K + 12K + 12K + 12K + 12K + 12K) paired with the powerful DIY-MULTI6-55HP230D-O condenser. Perfect for large homes, shops, or offices, this Energy Star–certified system delivers professional-grade performance with true DIY installation.

Each ceiling cassette installs flush within the ceiling for a clean, low-profile finish, while the system’s Quick-Connect® pre-charged line sets simplify installation — no vacuum pump or refrigerant handling required. Enjoy whisper-quiet comfort, smart-home control, and year-round efficiency even in extreme climates.

Key Features & Benefits

  • ✔ Complete 6-Zone kit (9K + 12K + 12K + 12K + 12K + 12K) with 55K BTU outdoor unit.
  • ✔ 22 SEER2 / 10.6 HSPF2-4 efficiency for lower energy bills.
  • ✔ Heats to −13 °F and cools to 122 °F for all-season performance.

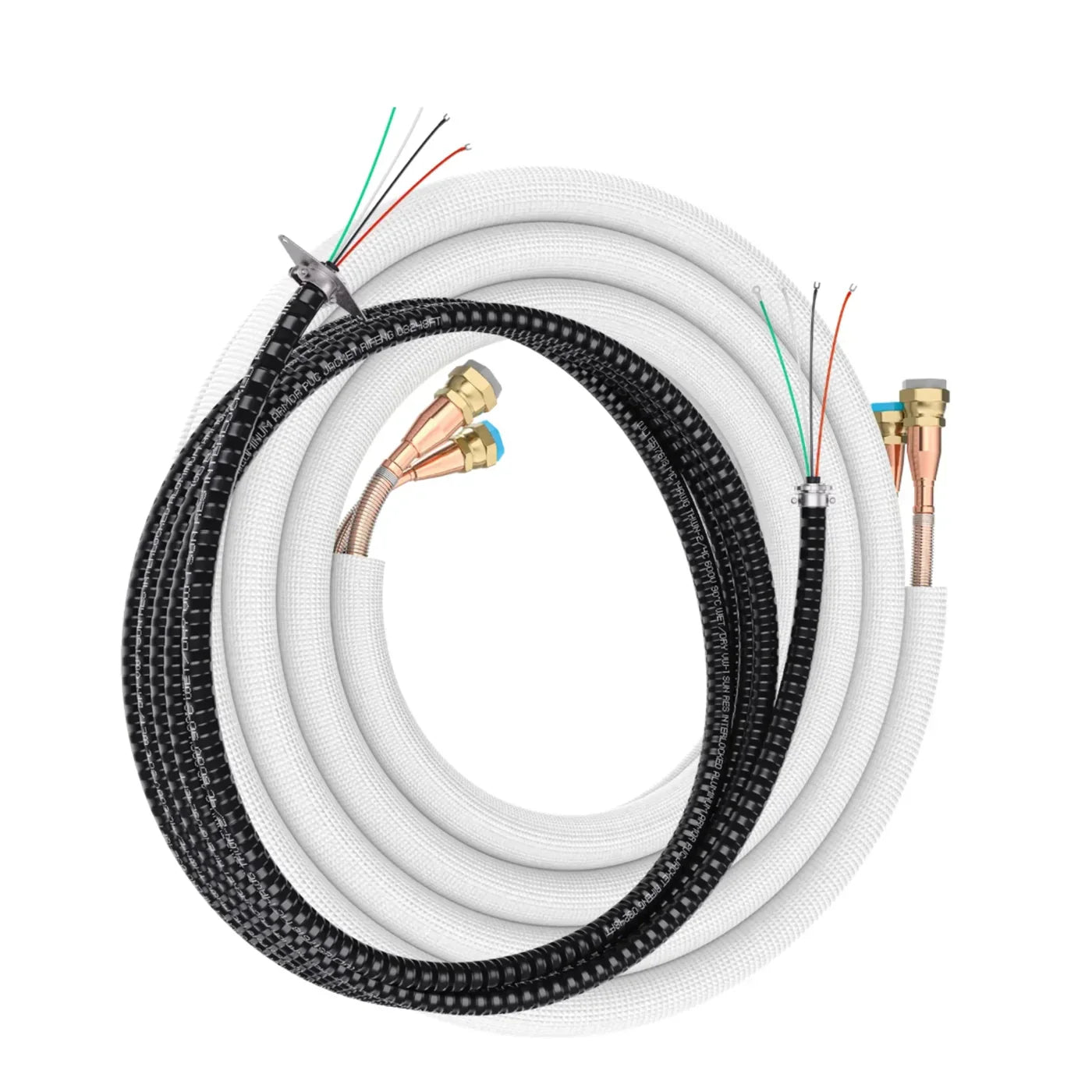

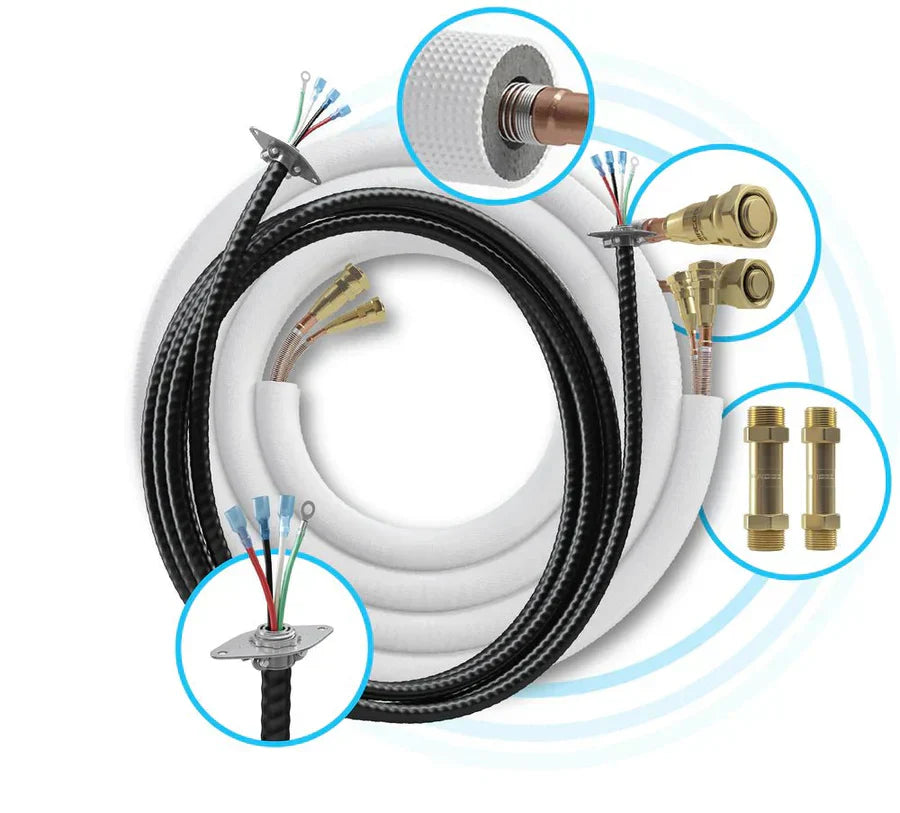

  • ✔ Quick-Connect® R-454B line sets — no vacuum or charging required.
  • ✔ Ceiling cassette air handlers mount flush for a clean, modern look.
  • ✔ Smart control via app, Alexa & Google Assistant.
  • ✔ DIYPro® cable eliminates the need for electrical conduit.
  • ✔ Gold Fin® anti-corrosion coating extends unit lifespan.

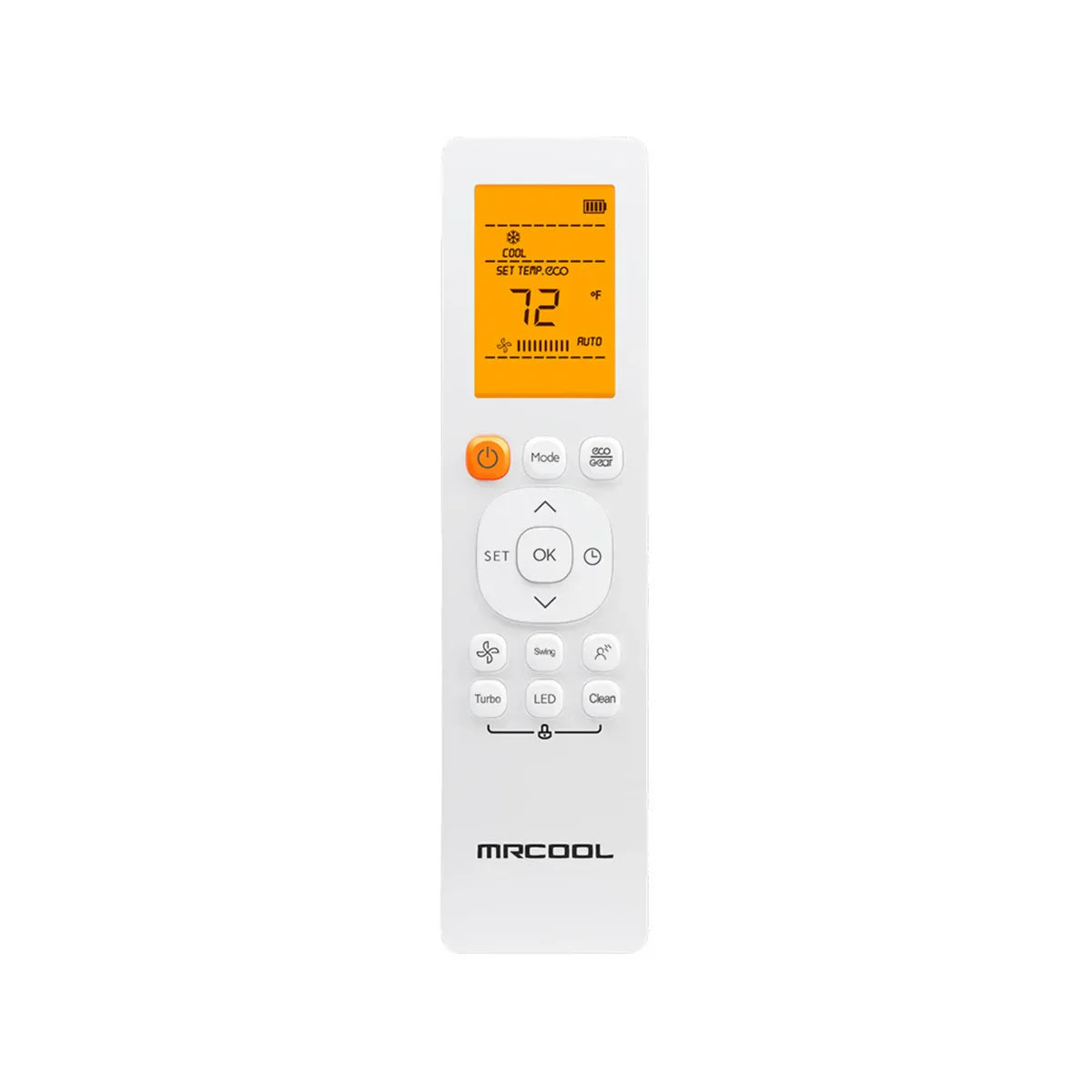

  • ✔ Follow Me® remote sensor tracks room temperature for personalized comfort.
  • ✔ AHRI & ETL listed, Energy Star certified for verified performance.
💡 Pro Tip: Every MRCOOL DIY ceiling cassette includes the WMK-19 Smart HVAC Wi-Fi Controller — a plug-and-play adapter that connects directly to the air handler for instant Wi-Fi access. Just plug it in and connect through the MRCOOL or SmartHVAC app to enable scheduling, usage tracking, and voice control with Alexa or Google Assistant.

Technical Specifications

  • Brand / Series: MRCOOL DIY 5th Gen Multi-Zone Mini-Split

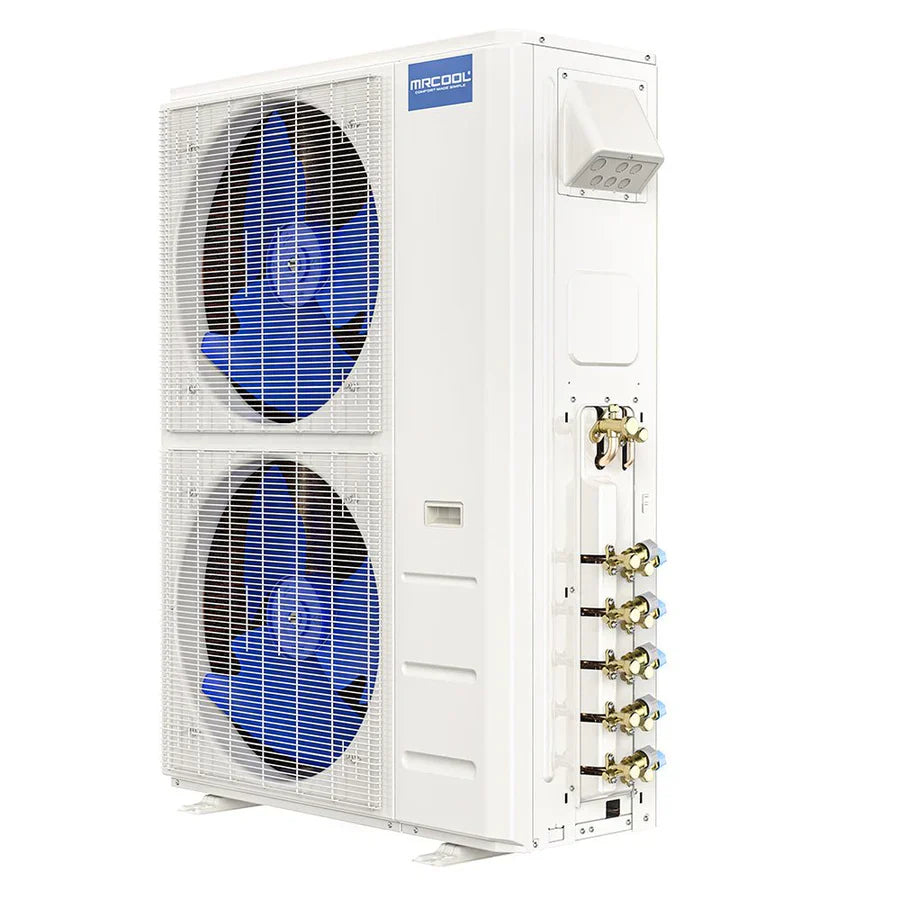

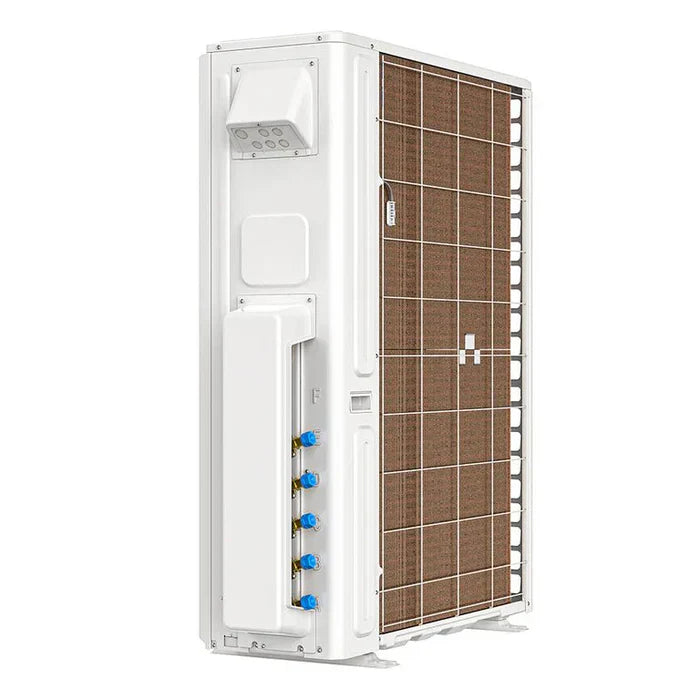

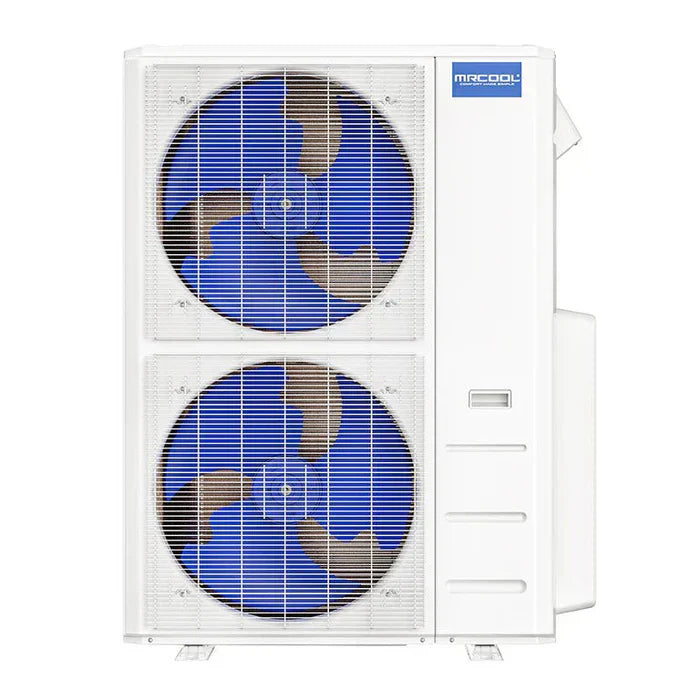

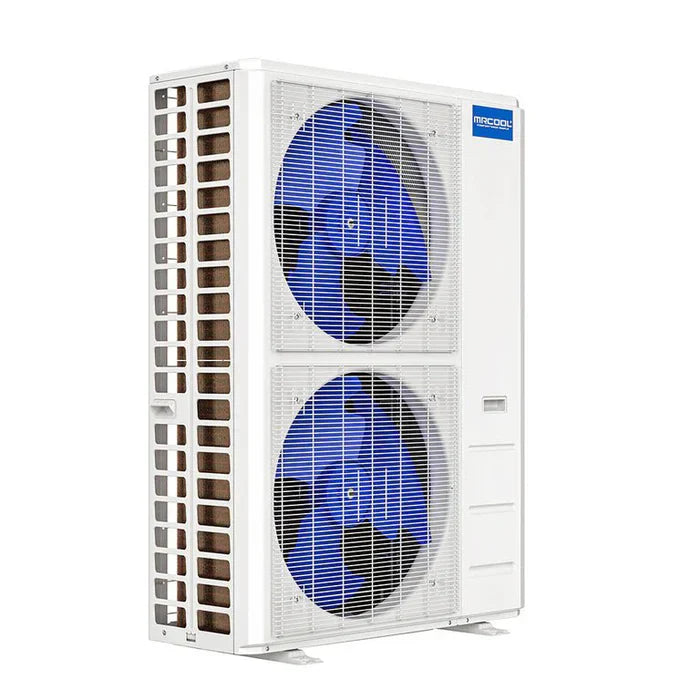

  • Outdoor Model: DIY-MULTI6-55HP230D-O
  • Indoor Models: Ceiling Cassettes (9K + 12K × 5)
  • Total BTU Capacity: 55,000 BTU Heating / 47,000 BTU Cooling
  • Zones: 6
  • Refrigerant: R-454B (Pre-Charged Quick-Connect)
  • Voltage: 208/230 V 1 Ph 60 Hz
  • Efficiency: 22 SEER2 | EER2 12 | HSPF2-4 10.6 | HSPF2-5 8.5
  • Operating Range: Heat to −13 °F | Cool to 122 °F
  • Sound Level: 64 dBA (Outdoor Unit)
  • Compressor: DC Inverter Rotary
  • Line Set Length: 25 ft each standard | Max total 221.4 ft
  • Certifications: Energy Star, AHRI, ETL Listed 5031495, UL
  • Warranty: 5-Year Parts | 7-Year Compressor | Limited Lifetime with MRCOOL Care registration
