MRCOOL®

DIYM655090912121212-CC

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 12K + 12K + 12K + 12K) Ductless Mini Split Heat Pump & Air Conditioner with Ceiling Cassette Units

50 in stock

$12,436.00 $15,420.64 You save $2,984.64
  • ™ Authorized Online Dealer of MRCOOL®
  • ✂ We Secure the Lowest Price
  • ⏲ Ships Within 2–3 Business Days
  • 🗐 Manufacturer Warranty Included
  • Questions? Call/Text Our Experts (940) 463-1346
  • Secured Payment
  • Authorized Dealer
  • 30-Day Return Policy

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 12K + 12K + 12K + 12K) Ductless Mini-Split Air Conditioner & Heat Pump with Ceiling Cassettes

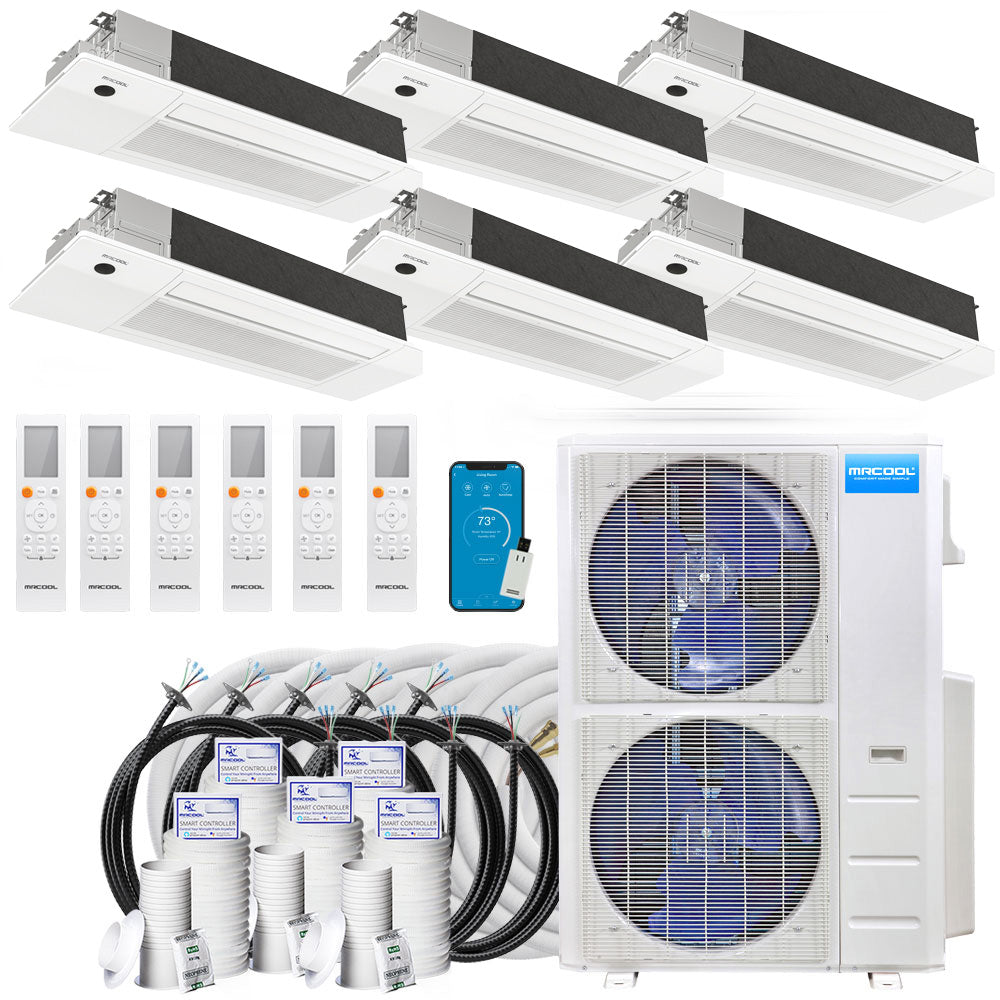

Experience total home comfort with the MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Ductless Mini-Split System — the ultimate DIY climate solution for large homes, shops, and offices. This complete setup pairs a powerful 55K BTU condenser with six low-profile ceiling cassette air handlers (9K + 9K + 12K + 12K + 12K + 12K), delivering efficient zoned heating and cooling with no professional installation required.

With Quick-Connect® pre-charged line sets, advanced Wi-Fi control, and an industry-leading 22 SEER2 efficiency rating, this MRCOOL system offers premium performance, whisper-quiet operation, and smart home integration through Alexa or Google Assistant.

Key Features & Benefits

  • ✔ 6-Zone configuration: (9K + 9K + 12K + 12K + 12K + 12K) ceiling cassette air handlers.
  • ✔ 22 SEER2 / 10.6 HSPF2-4 energy efficiency for reduced power costs.
  • ✔ Heats to −13°F and cools to 122°F for true four-season comfort.

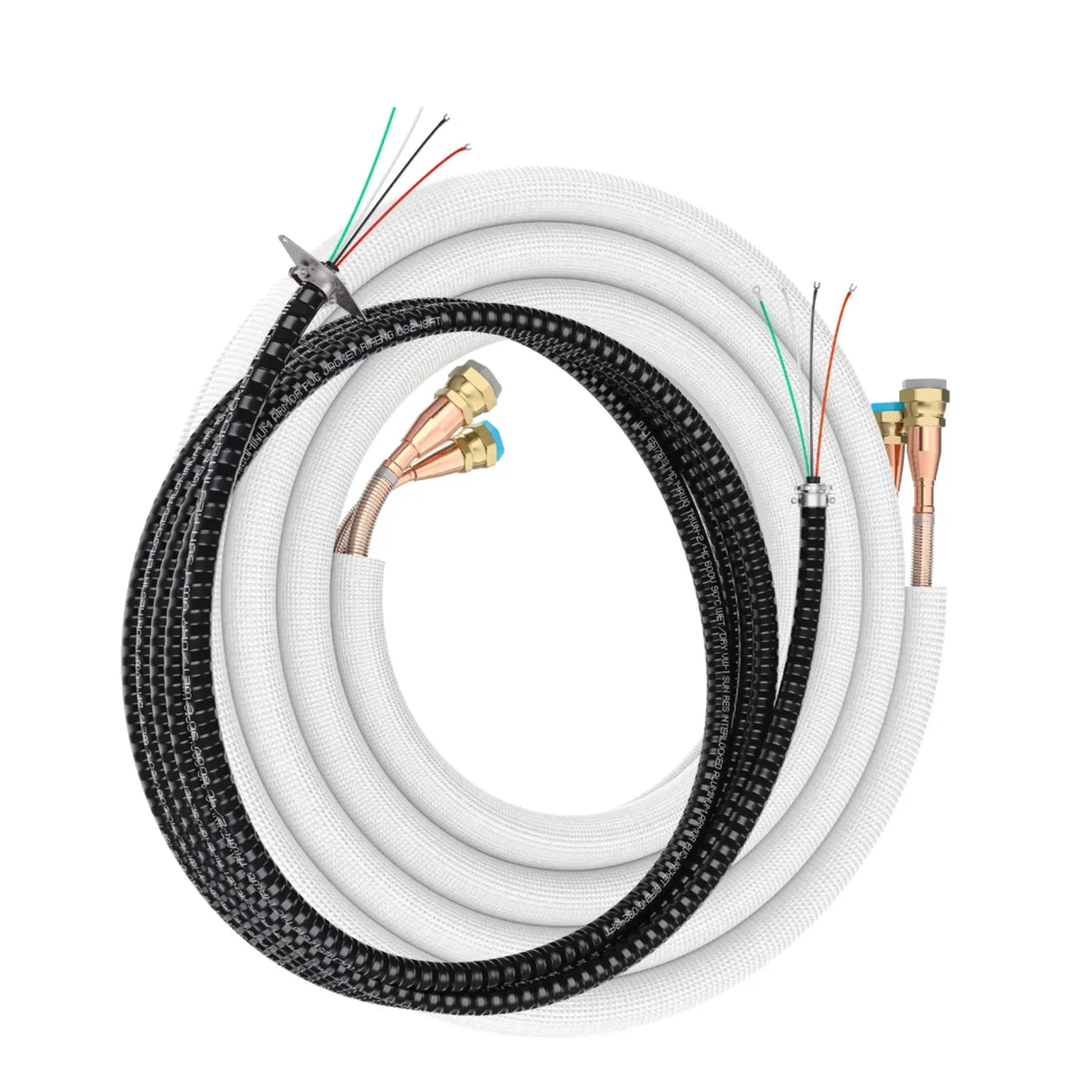

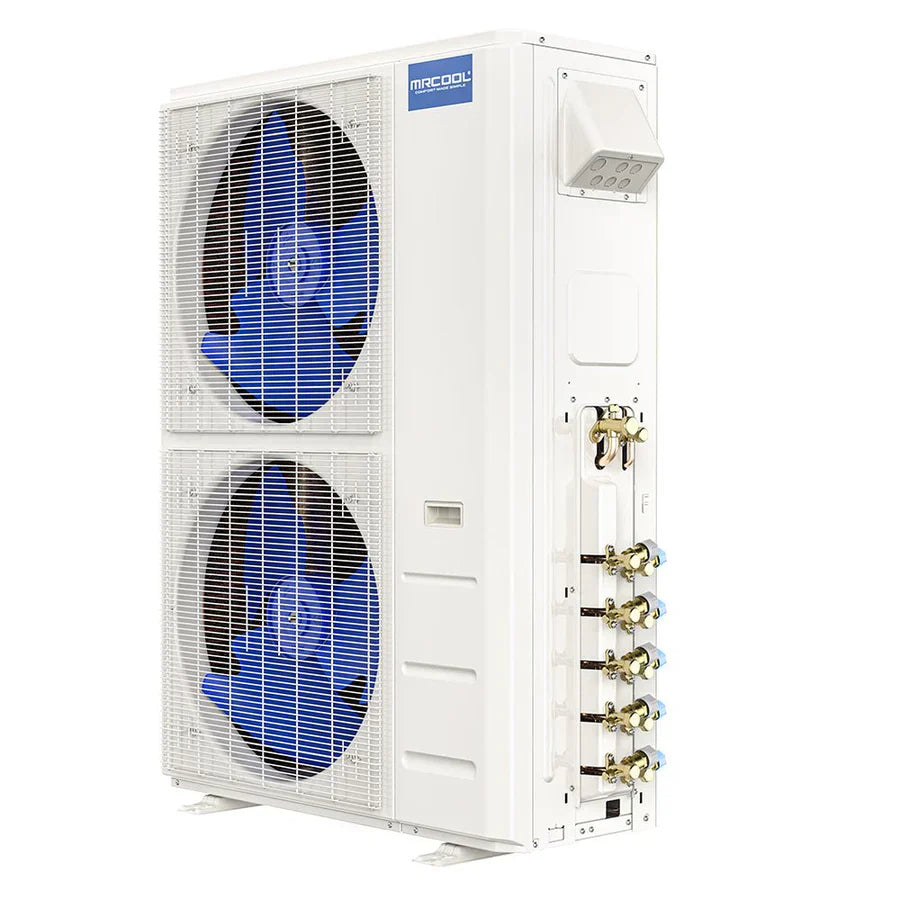

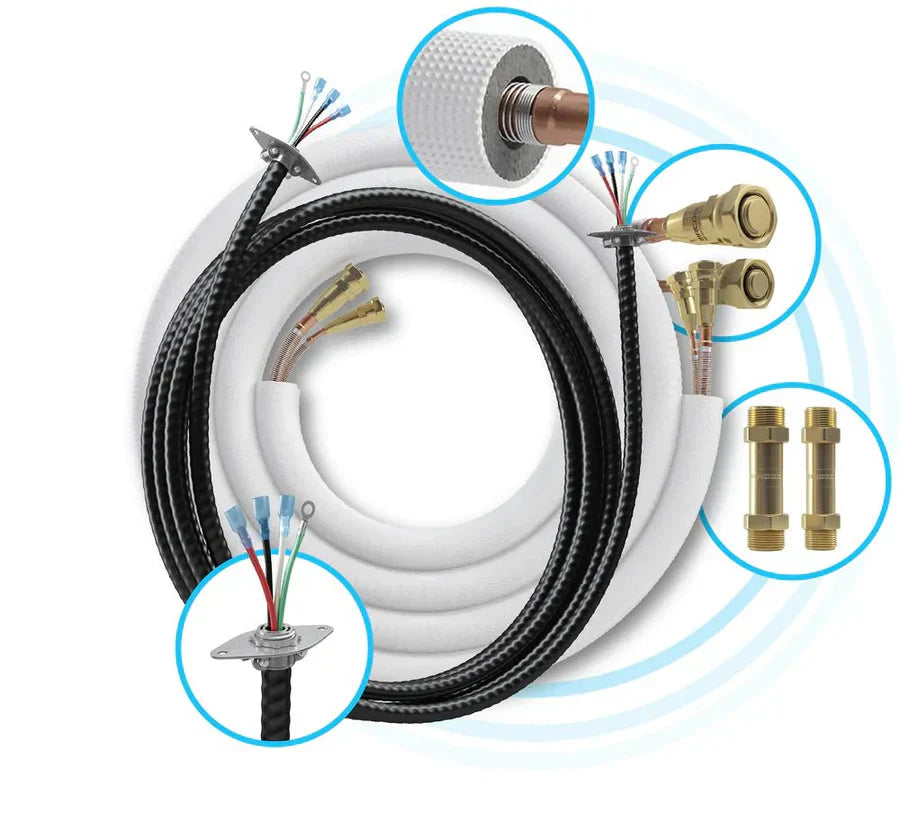

  • ✔ Quick-Connect® pre-charged R-454B line sets — no vacuuming or refrigerant handling required.
  • ✔ Ceiling cassette design blends seamlessly into ceilings for a low-profile look.
  • ✔ Wi-Fi, Alexa, and Google Assistant control via MRCOOL SmartHVAC App.
  • ✔ DIYPro® cable included — eliminates electrical conduit needs for faster installation.

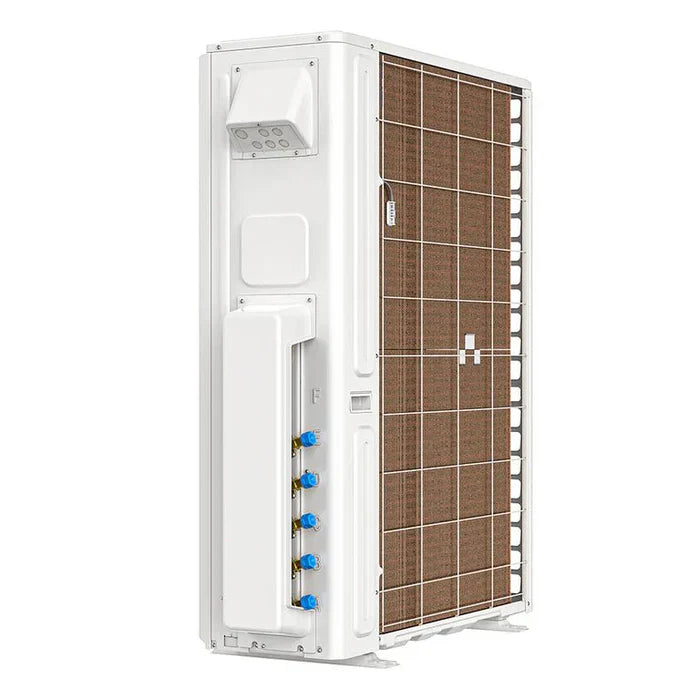

  • ✔ Gold Fin® anti-corrosion coating protects against outdoor elements.

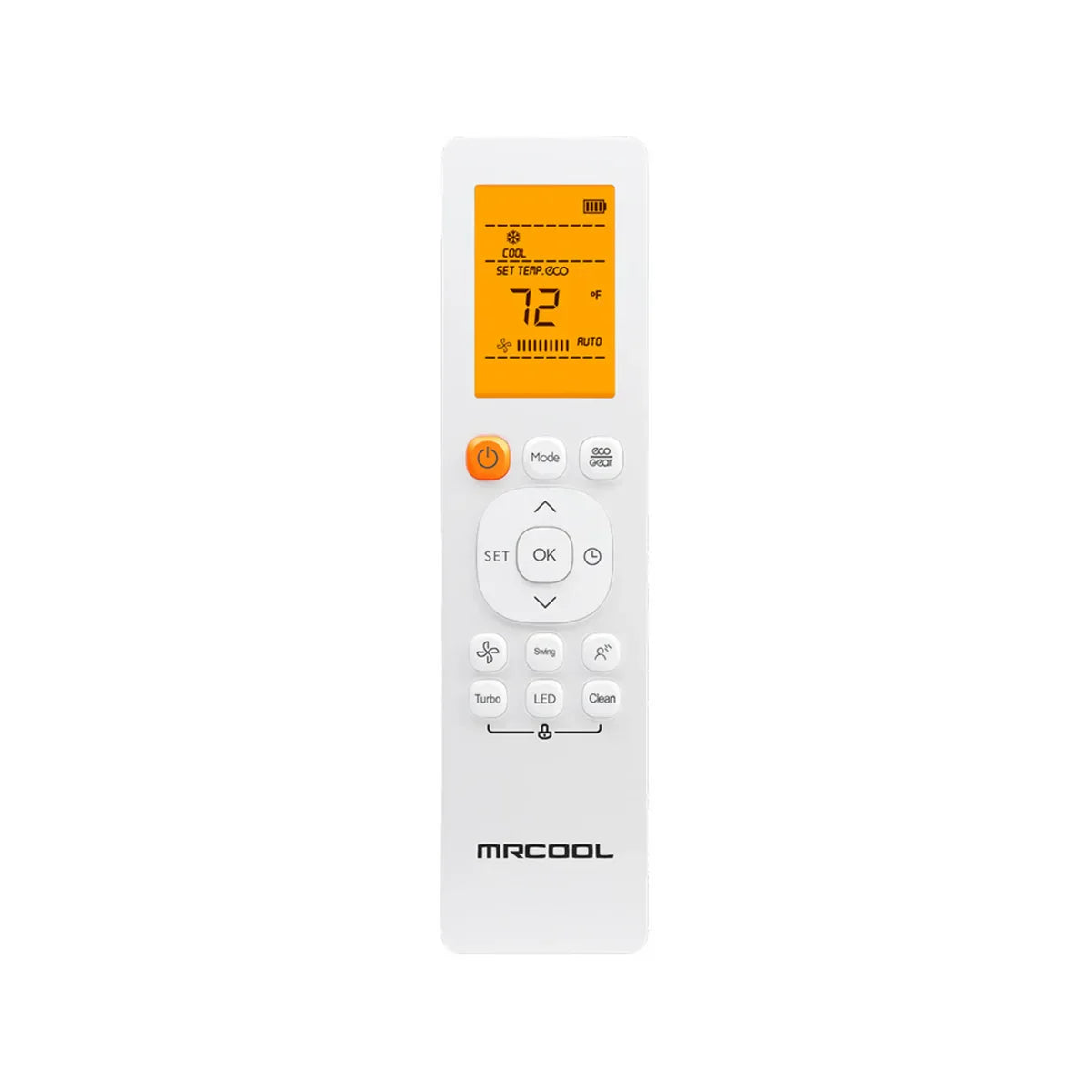

  • ✔ Follow Me® remote sensor maintains the perfect temperature near you.
  • ✔ Energy Star, AHRI, and ETL Certified — proven efficiency and safety.
💡 Pro Tip: Each MRCOOL DIY ceiling cassette includes the WMK-19 Smart HVAC Wi-Fi Controller. Simply plug it into the air handler for instant app access via MRCOOL or SmartHVAC. Schedule temperature changes, monitor performance, and control your system hands-free with Alexa or Google Assistant.

Technical Specifications

  • Brand / Series: MRCOOL DIY 5th Gen Multi-Zone Mini-Split

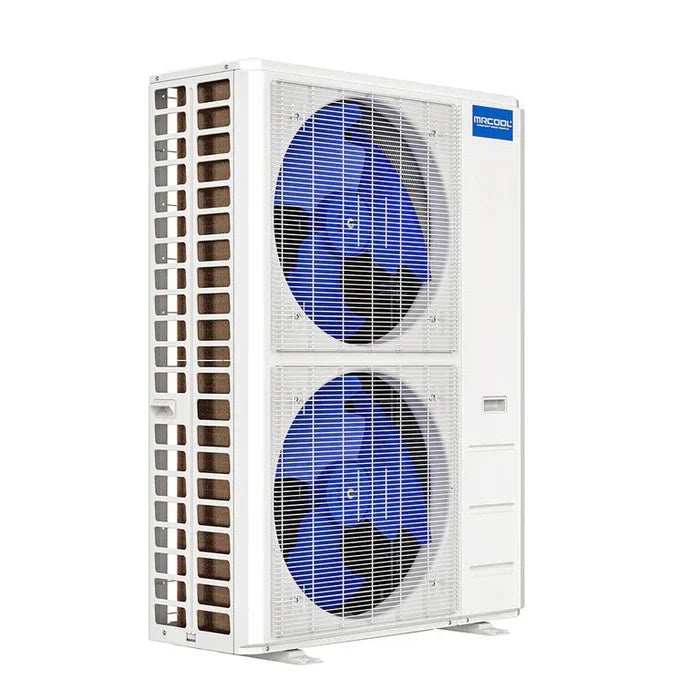

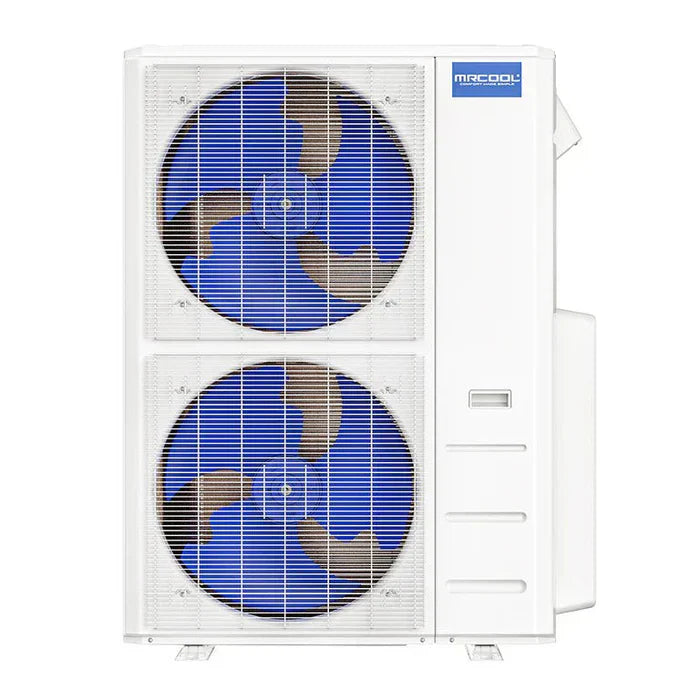

  • Outdoor Model: DIY-MULTI6-55HP230D-O
  • Indoor Models: Ceiling Cassettes (9K + 9K + 12K + 12K + 12K + 12K)
  • Total Capacity: 55,000 BTU Heating / 47,000 BTU Cooling
  • Zones: 6
  • Refrigerant: R-454B (Pre-Charged Quick-Connect)
  • Efficiency: SEER2 22 | EER2 12 | HSPF2-4 10.6 | HSPF2-5 8.5
  • Voltage: 208/230V, 1 Phase, 60 Hz
  • Operating Range: Heat down to −13°F | Cool up to 122°F
  • Sound Level: 64 dBA (Outdoor Unit)
  • Compressor: DC Inverter Rotary
  • Max Line Set Length: 221.4 ft total combined
  • Certifications: Energy Star, AHRI, ETL, UL, Intertek 5031495
  • Warranty: 5-Year Parts | 7-Year Compressor | Limited Lifetime with MRCOOL Care registration
