MRCOOL®

DIYM655090909121212-CC

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 9K + 12K + 12K + 12K) Ductless Mini Split Heat Pump & Air Conditioner with Ceiling Cassette Units

50 in stock

$12,425.00 $15,407.00 You save $2,982.00
  • ™ Authorized Online Dealer of MRCOOL®
  • ✂ We Secure the Lowest Price
  • ⏲ Ships Within 2–3 Business Days
  • 🗐 Manufacturer Warranty Included
  • Questions? Call/Text Our Experts (940) 463-1346
  • Secured Payment
  • Authorized Dealer
  • 30-Day Return Policy

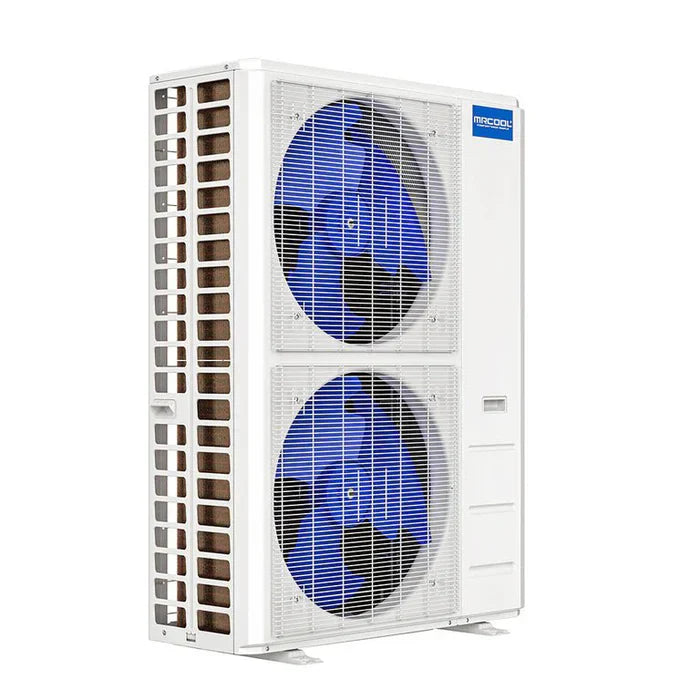

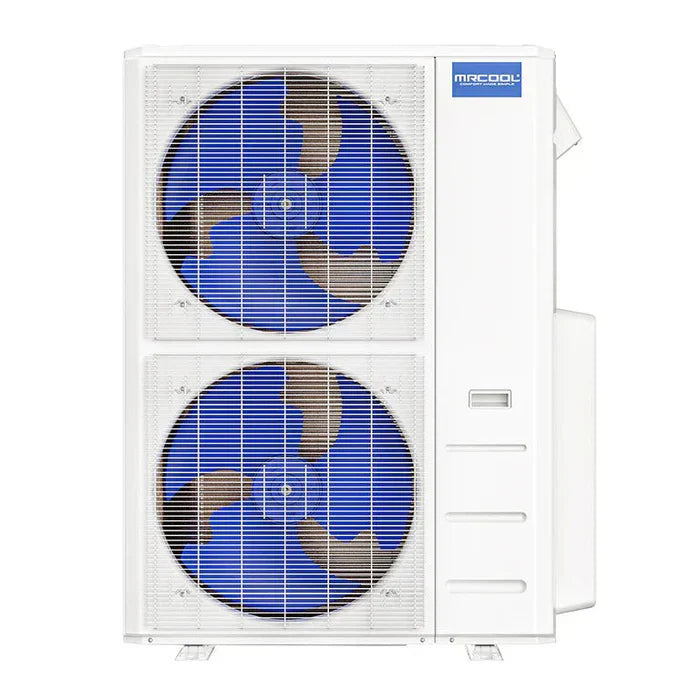

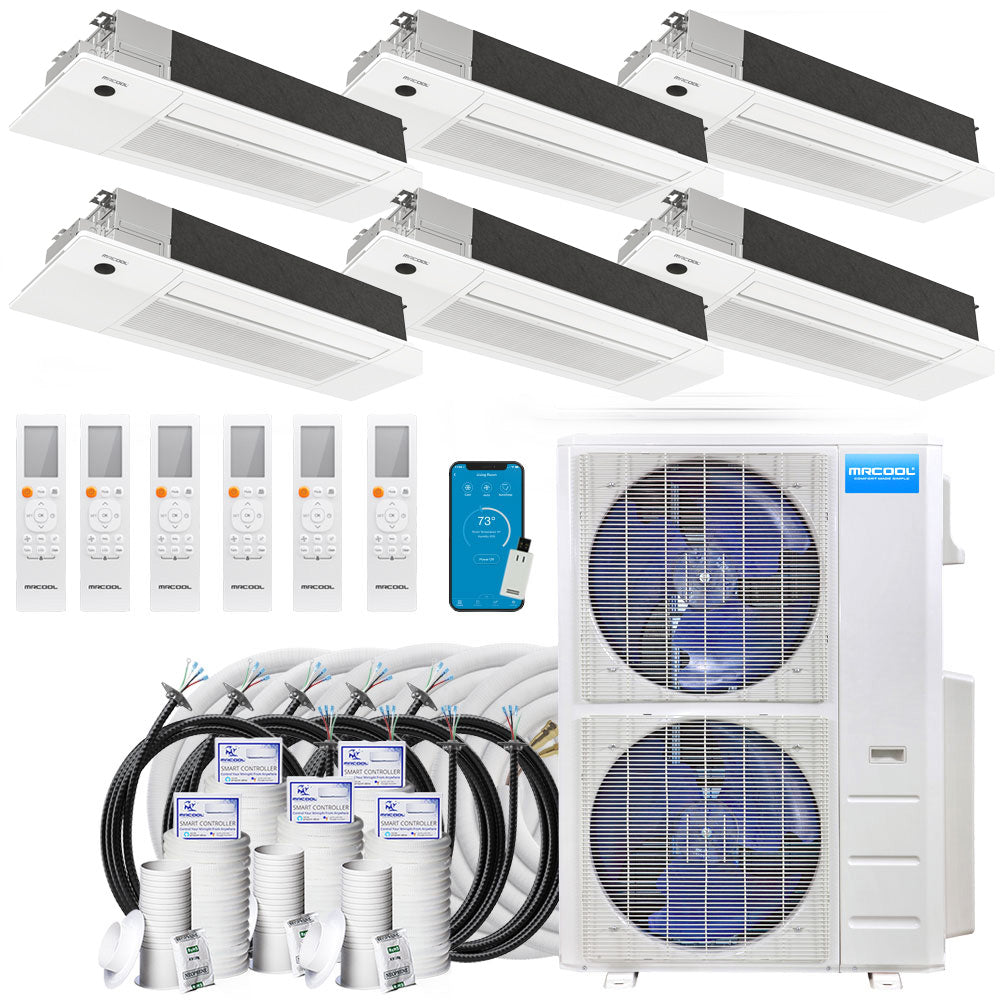

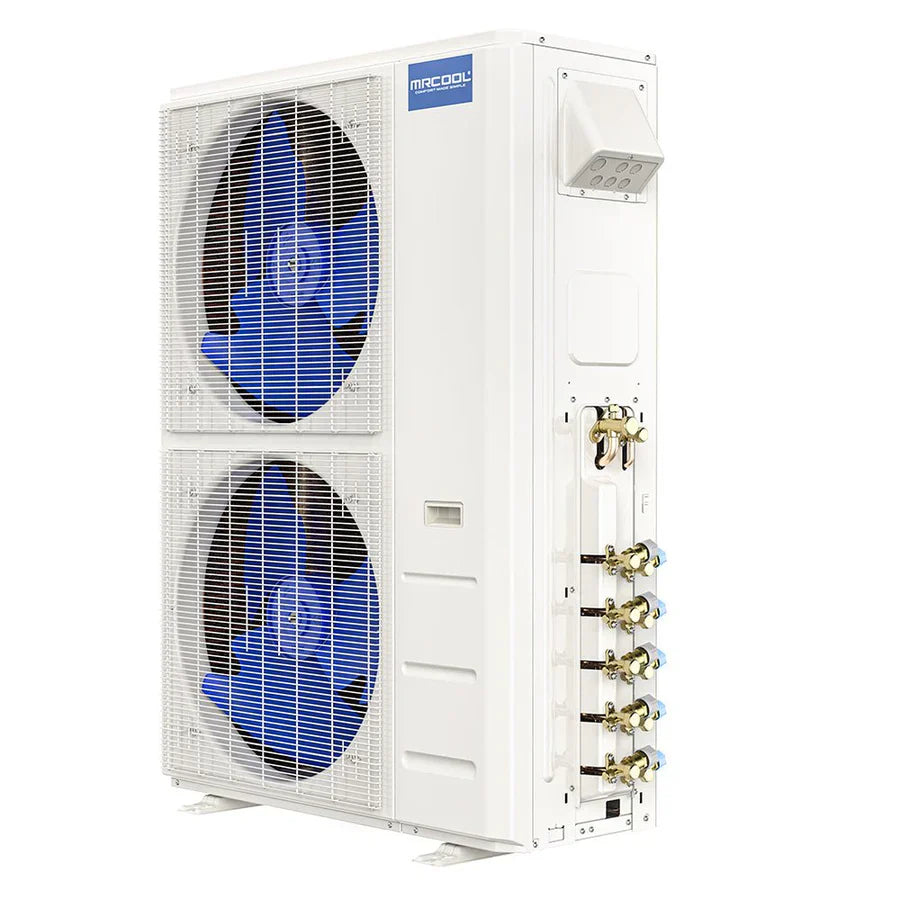

MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Ceiling Cassette Mini-Split System | DIY-MULTI6-55HP230D-O

The MRCOOL DIY 5th Generation 55,000 BTU 6-Zone Ceiling Cassette Mini-Split System is the largest-capacity DIY system MRCOOL has ever produced — engineered for whole-home comfort and true do-it-yourself installation. Perfect for homeowners who want professional-grade performance without professional labor, this high-efficiency system pairs a 55K BTU condenser with your choice of low-profile ceiling cassette air handlers for quiet, concealed heating and cooling.

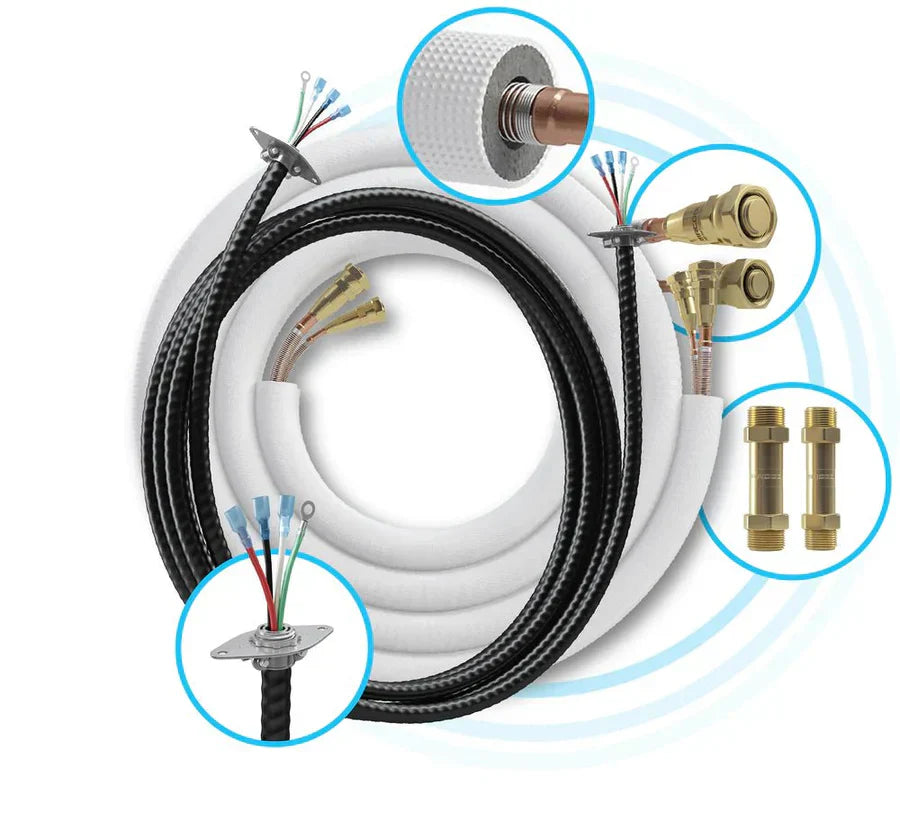

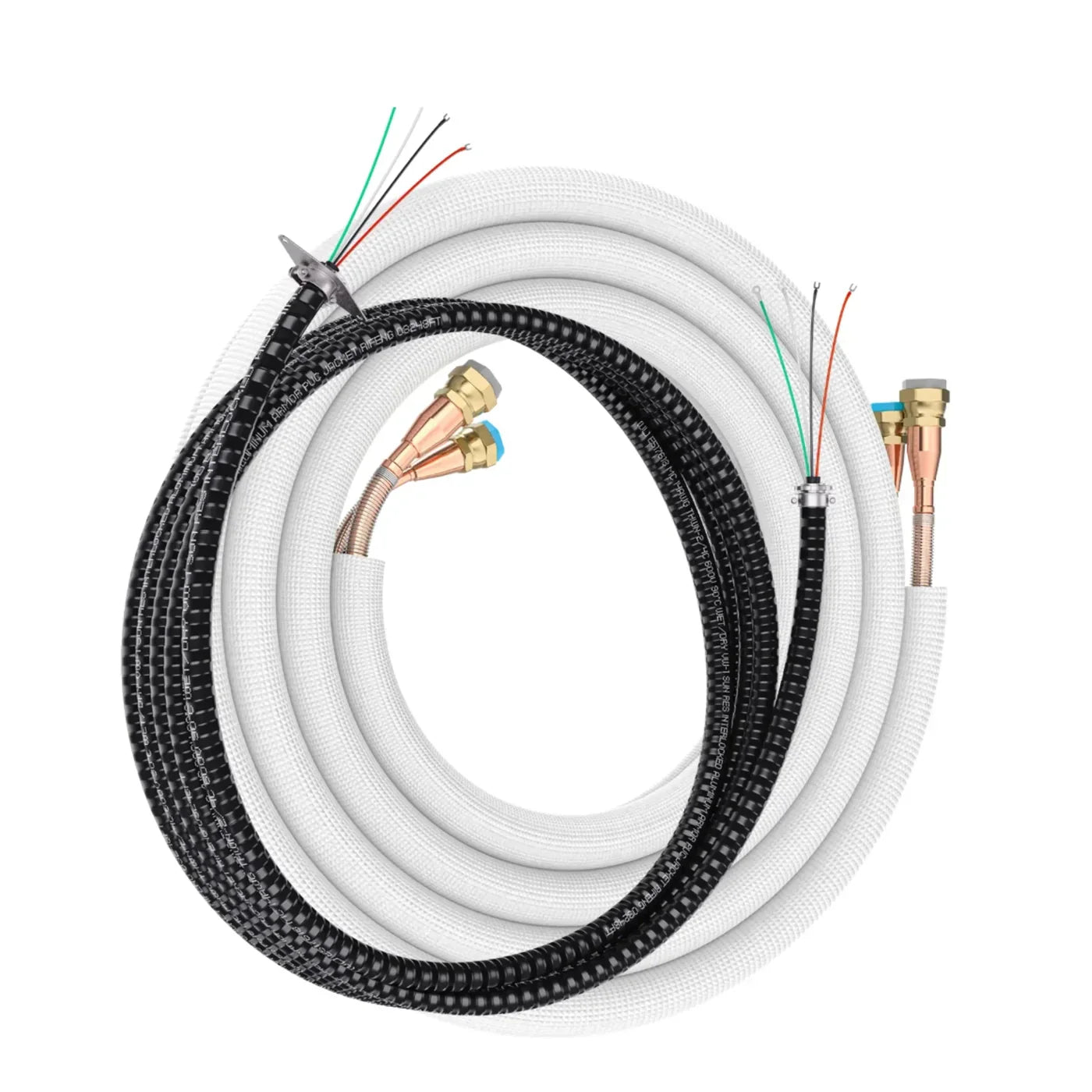

Designed around MRCOOL’s revolutionary Quick-Connect® pre-charged line sets, installation is fast, clean, and safe — no vacuum pump or refrigerant tools required. With a 21.5 SEER2 rating and R-454B refrigerant, this 6-zone system delivers powerful comfort, high efficiency, and eco-friendly performance year-round.

Key Features & Benefits

  • ✔ Supports up to six indoor zones with one 55K BTU condenser.
  • ✔ Compatible with 6K, 9K, 12K, and 18K ceiling cassette units for flexible room coverage.
  • ✔ 21.5 SEER2 / 10.6 HSPF2-4 efficiency rating for reduced energy costs.
  • ✔ Heats to −13°F and cools to 122°F for dependable year-round performance.
  • ✔ Flush-mounted ceiling cassettes blend seamlessly with your interior design.

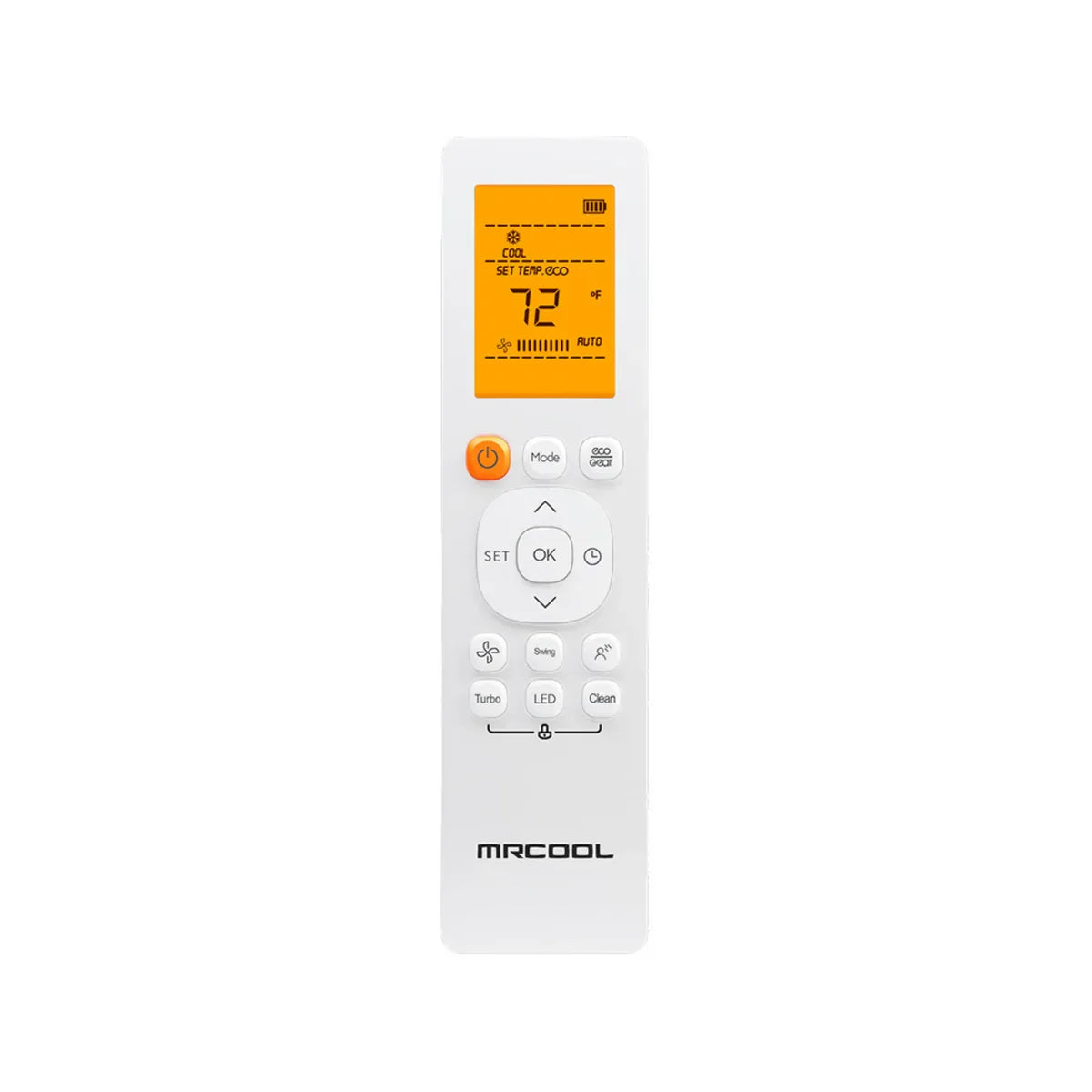

  • ✔ Smart control through the MRCOOL app, Alexa, or Google Assistant.

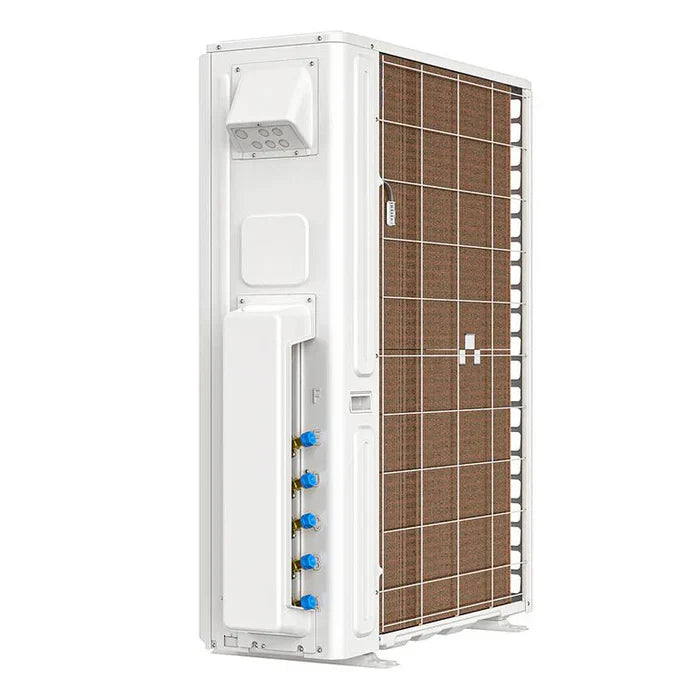

  • ✔ Gold Fin® anti-corrosion coating for extended outdoor durability.
  • ✔ DIYPro® cable included — simplifies wiring without conduit.
  • ✔ Energy Star, AHRI, and ETL listed for performance and safety verification.
  • ✔ 5-Year Parts and 7-Year Compressor Warranty (Lifetime optional with MRCOOL Care).
💡 Pro Tip: Skip the contractor markup and save thousands by installing this system yourself! The MRCOOL DIY 5th Gen’s pre-charged Quick-Connect® line sets make it possible for most homeowners to complete their installation in a weekend — no refrigerant handling, vacuum pump, or pro labor required. It’s the perfect combination of innovation, affordability, and independence.

Technical Specifications

  • Brand: MRCOOL
  • Series: DIY 5th Gen Multi-Zone Mini-Split
  • Model: DIY-MULTI6-55HP230D-O
  • Cooling Capacity: 47,000 BTU
  • Heating Capacity: 55,000 BTU
  • Zones: 6
  • Refrigerant: R-454B (Pre-Charged Quick-Connect®)
  • Efficiency: 21.5 SEER2 | EER2 12 | HSPF2-4 10.6
  • Voltage: 208/230V, 1 Phase, 60 Hz
  • Compressor: DC Inverter Rotary
  • Operating Range: Heat down to −13°F | Cool up to 122°F
  • Noise Level: 64 dBA (Outdoor Unit)
  • Max Line Set Length: 221.4 ft combined
  • Certifications: Energy Star, AHRI, ETL, UL
  • Warranty: 5-Year Parts | 7-Year Compressor | Lifetime (MRCOOL Care Registration)
